Please send RFQ , we will respond immediately.

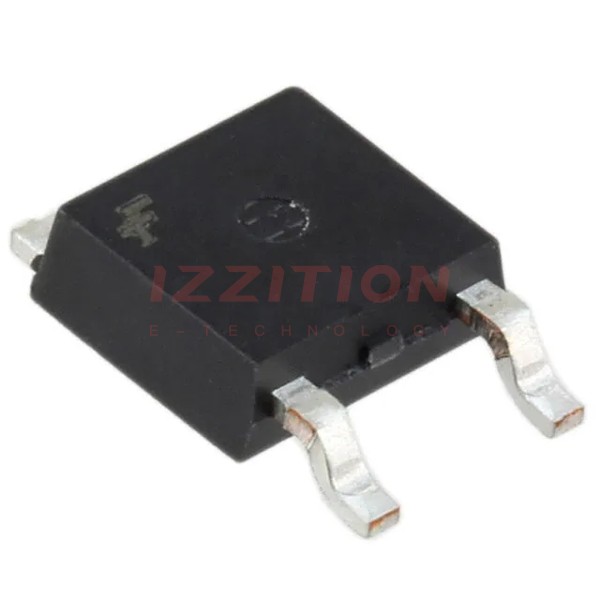

| Part Number | MC7810ECDTX | MC7810ECDTXM | MC7812ECDTX |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 35V | 35V | 35V |
| Voltage - Output (Min/Fixed) | 10V | 10V | 12V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | - | - | 2V @ 1A (Typ) |
| Current - Output | 1A | 1A | 1A |
| Current - Quiescent (Iq) | - | - | 8 mA |
| Current - Supply (Max) | - | - | - |
| PSRR | - | - | 71dB (120Hz) |
| Control Features | - | - | - |
| Protection Features | Over Temperature, Short Circuit | Over Temperature, Short Circuit | Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C | 0°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | D-Pak | D-Pak | D-Pak |
