MC74VHC1GU04MU1TCG
  • Share:

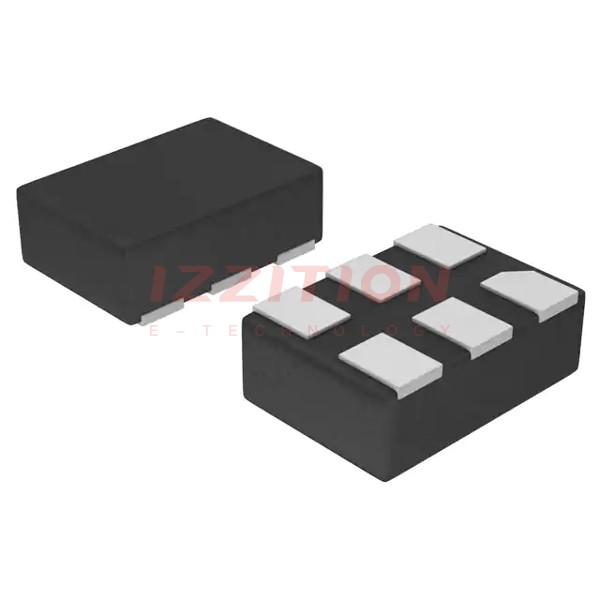

onsemi MC74VHC1GU04MU1TCG

Manufacturer No:
MC74VHC1GU04MU1TCG
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Datasheet:
MC74VHC1GU04MU1TCG Datasheet
ECAD Model:
-
Description:
IC INVERTER 1CH 1-INP 6UDFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Logic Type:Inverter
Number of Circuits:1
Number of Inputs:1
Features:-
Voltage - Supply:2V ~ 5.5V
Current - Quiescent (Max):1 µA
Current - Output High, Low:8mA, 8mA
Logic Level - Low:0.3V ~ 1.1V
Logic Level - High:1.7V ~ 4.4V
Max Propagation Delay @ V, Max CL:7ns @ 5V, 50pF
Operating Temperature:-55°C ~ 125°C
Mounting Type:Surface Mount
Supplier Device Package:6-UDFN (1.45x1)
Package / Case:6-UFDFN
0 Remaining View Similar

In Stock

$0.44
536

Please send RFQ , we will respond immediately.

Similar Products

Part Number MC74VHC1GU04MU1TCG MC74VHC1GT04MU1TCG
Manufacturer onsemi onsemi
Product Status Obsolete Obsolete
Logic Type Inverter Inverter
Number of Circuits 1 1
Number of Inputs 1 1
Features - -
Voltage - Supply 2V ~ 5.5V 2V ~ 5.5V
Current - Quiescent (Max) 1 µA 1 µA
Current - Output High, Low 8mA, 8mA 8mA, 8mA
Logic Level - Low 0.3V ~ 1.1V 0.28V ~ 0.8V
Logic Level - High 1.7V ~ 4.4V 1V ~ 2V
Max Propagation Delay @ V, Max CL 7ns @ 5V, 50pF 7.5ns @ 5V, 50pF
Operating Temperature -55°C ~ 125°C -55°C ~ 125°C
Mounting Type Surface Mount Surface Mount
Supplier Device Package 6-UDFN (1.45x1) 6-UDFN (1.45x1)
Package / Case 6-UFDFN 6-UFDFN
