Please send RFQ , we will respond immediately.

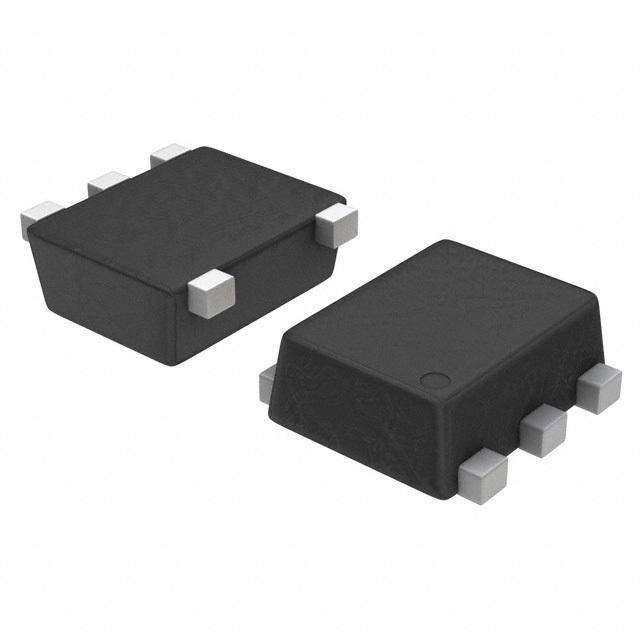

| Part Number | MC74VHC1GT00P5T5G | MC74VHC1GT08P5T5G | MC74VHC1GT04P5T5G |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Logic Type | NAND Gate | AND Gate | Inverter |
| Number of Circuits | 1 | 1 | 1 |
| Number of Inputs | 2 | 2 | 1 |
| Features | - | - | - |
| Voltage - Supply | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA | 1 µA | 1 µA |
| Current - Output High, Low | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA |
| Logic Level - Low | 0.28V ~ 0.8V | 0.28V ~ 0.8V | 0.28V ~ 0.8V |
| Logic Level - High | 1V ~ 2V | 1V ~ 2V | 1V ~ 2V |
| Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF | 7.9ns @ 5V, 50pF | 7.5ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SOT-953 | SOT-953 | SOT-953 |
| Package / Case | SOT-953 | SOT-953 | SOT-953 |
