MC74VHC1G32MU2TCG
  • Share:

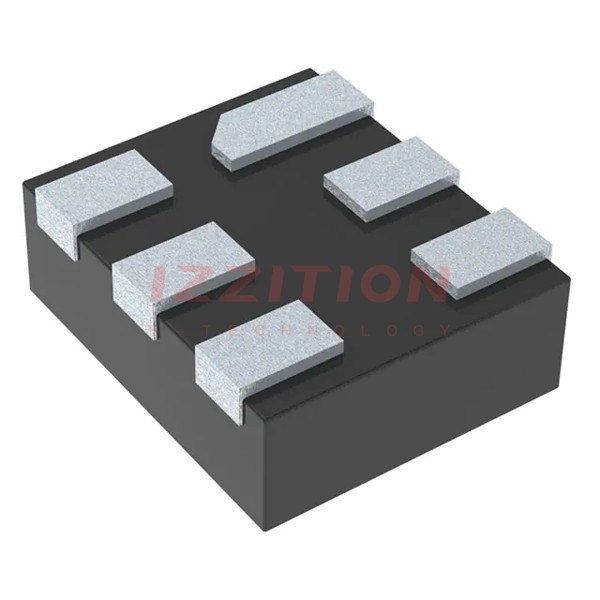

onsemi MC74VHC1G32MU2TCG

Manufacturer No:
MC74VHC1G32MU2TCG
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Datasheet:
MC74VHC1G32MU2TCG Datasheet
ECAD Model:
-
Description:
IC GATE OR 1CH 2-INP 6UDFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Logic Type:OR Gate
Number of Circuits:1
Number of Inputs:2
Features:-
Voltage - Supply:2V ~ 5.5V
Current - Quiescent (Max):1 µA
Current - Output High, Low:8mA, 8mA
Logic Level - Low:0.5V ~ 1.65V
Logic Level - High:1.5V ~ 3.85V
Max Propagation Delay @ V, Max CL:7.5ns @ 5V, 50pF
Operating Temperature:-55°C ~ 125°C
Mounting Type:Surface Mount
Supplier Device Package:6-UDFN (1.2x1)
Package / Case:6-UFDFN
0 Remaining View Similar

In Stock

$0.12
7,851

Please send RFQ , we will respond immediately.

Similar Products

Part Number MC74VHC1G32MU2TCG MC74VHC1G32MU3TCG   MC74VHC1G32MU1TCG
Manufacturer onsemi onsemi onsemi
Product Status Obsolete Obsolete Obsolete
Logic Type OR Gate OR Gate OR Gate
Number of Circuits 1 1 1
Number of Inputs 2 2 2
Features - - -
Voltage - Supply 2V ~ 5.5V 2V ~ 5.5V 2V ~ 5.5V
Current - Quiescent (Max) 1 µA 1 µA 1 µA
Current - Output High, Low 8mA, 8mA 8mA, 8mA 8mA, 8mA
Logic Level - Low 0.5V ~ 1.65V 0.5V ~ 1.65V 0.5V ~ 1.65V
Logic Level - High 1.5V ~ 3.85V 1.5V ~ 3.85V 1.5V ~ 3.85V
Max Propagation Delay @ V, Max CL 7.5ns @ 5V, 50pF 7.5ns @ 5V, 50pF 7.5ns @ 5V, 50pF
Operating Temperature -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C
Mounting Type Surface Mount Surface Mount Surface Mount
Supplier Device Package 6-UDFN (1.2x1) 6-UDFN (1x1) 6-UDFN (1.45x1)
Package / Case 6-UFDFN 6-UFDFN 6-UFDFN
