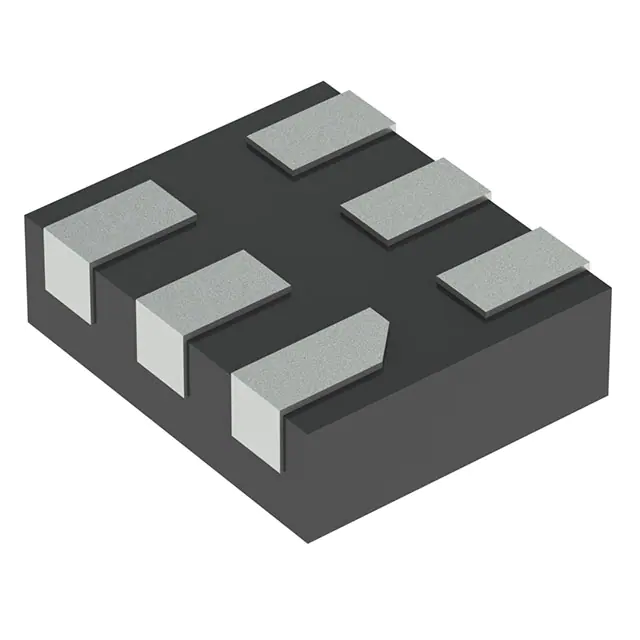

| Part Number | MC74VHC1G14MU2TCG | MC74VHC1GT14MU2TCG | MC74VHC1G04MU2TCG |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Obsolete | Obsolete |
| Logic Type | Inverter | Inverter | Inverter |
| Number of Circuits | 1 | 1 | 1 |
| Number of Inputs | 1 | 1 | 1 |
| Features | Schmitt Trigger | Schmitt Trigger | - |
| Voltage - Supply | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA | 1 µA | 1 µA |
| Current - Output High, Low | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA |
| Logic Level - Low | 1.5V ~ 2.9V | 0.76V ~ 1.13V | 0.5V ~ 1.65V |
| Logic Level - High | 2.2V ~ 3.85V | 1.6V ~ 2.1V | 1.5V ~ 3.85V |
| Max Propagation Delay @ V, Max CL | 10.6ns @ 5V, 50pF | 10.6ns @ 5V, 50pF | 7.5ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 6-UDFN (1.2x1) | 6-UDFN (1.2x1) | 6-UDFN (1.2x1) |
| Package / Case | 6-UFDFN | 6-UFDFN | 6-UFDFN |
