Please send RFQ , we will respond immediately.

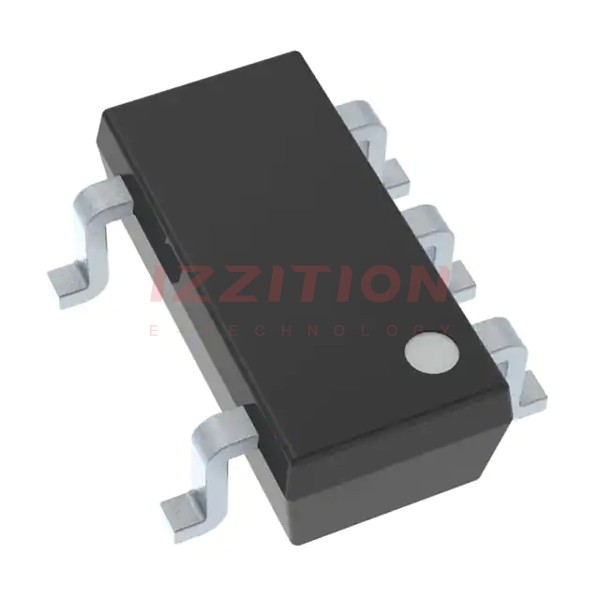

| Part Number | MC74VHC1G02DBVT1G | MC74VHC1G08DBVT1G | MC74VHC1G32DBVT1G | MC74VHC1G03DBVT1G | MC74VHC1G04DBVT1G | MC74VHC1G05DBVT1G | MC74VHC1G09DBVT1G | MC74VHC1G00DBVT1G | MC74VHC1G01DBVT1G |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Logic Type | NOR Gate | - | OR Gate | NOR Gate | Inverter | Inverter | AND Gate | NAND Gate | NAND Gate |
| Number of Circuits | 1 | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of Inputs | 2 | - | 2 | 2 | 1 | 1 | 2 | 2 | 2 |
| Features | - | - | - | Open Drain | - | Open Drain | Open Drain | - | Open Drain |
| Voltage - Supply | 2V ~ 5.5V | - | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA | - | 1 µA | 1 µA | 1 µA | 1 µA | 1 µA | 1 µA | 1 µA |
| Current - Output High, Low | 8mA, 8mA | - | 8mA, 8mA | -, 8mA | 8mA, 8mA | -, 8mA | -, 8mA | 8mA, 8mA | -, 8mA |
| Logic Level - Low | 0.5V ~ 1.65V | - | 0.5V ~ 1.65V | 0.5V ~ 1.65V | 0.5V ~ 1.65V | 0.5V ~ 1.65V | 0.5V ~ 1.65V | 0.5V ~ 1.65V | 0.5V ~ 1.65V |
| Logic Level - High | 1.5V ~ 3.85V | - | 1.5V ~ 3.85V | 1.5V ~ 3.85V | 1.5V ~ 3.85V | 1.5V ~ 3.85V | 1.5V ~ 3.85V | 1.5V ~ 3.85V | 1.5V ~ 3.85V |
| Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF | - | 7.5ns @ 5V, 50pF | 7.5ns @ 5V, 50pF | 7.5ns @ 5V, 50pF | 7.5ns @ 5V, 50pF | 7.9ns @ 5V, 50pF | 7.5ns @ 5V, 50pF | 7.5ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C | - | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SC-74A | - | SC-74A | SC-74A | SC-74A | SC-74A | SC-74A | SC-74A | SC-74A |
| Package / Case | SC-74A, SOT-753 | - | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 |
