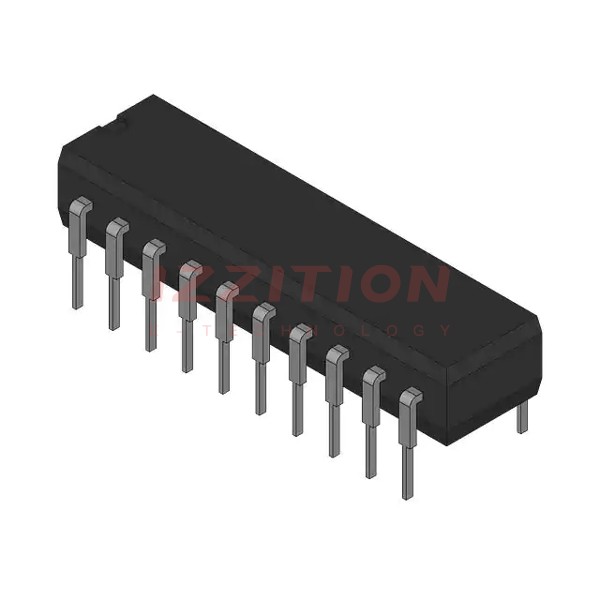

| Part Number | MC74HC534AN | MC74HC564AN |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| Function | Standard | Standard |
| Type | D-Type | D-Type |
| Output Type | Tri-State, Inverted | Tri-State, Inverted |
| Number of Elements | 1 | 1 |
| Number of Bits per Element | 8 | 8 |
| Clock Frequency | 60 MHz | 60 MHz |
| Max Propagation Delay @ V, Max CL | 28ns @ 6V, 50pF | 28ns @ 6V, 50pF |
| Trigger Type | Positive Edge | Positive Edge |
| Current - Output High, Low | 7.8mA, 7.8mA | 7.8mA, 7.8mA |
| Voltage - Supply | 2V ~ 6V | 2V ~ 6V |
| Current - Quiescent (Iq) | 8 µA | 8 µA |
| Input Capacitance | 10 pF | 10 pF |
| Operating Temperature | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | 20-PDIP | 20-PDIP |
| Package / Case | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) |
