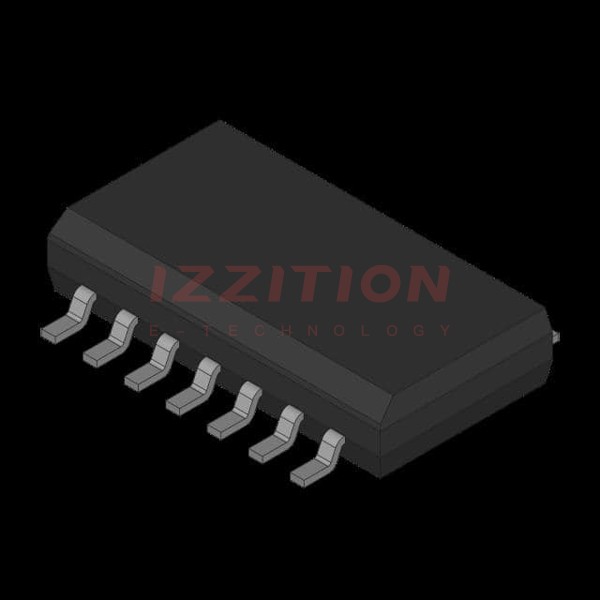

| Part Number | MC74HC32AFR1 | MC74HC32AFR2 | MC74HC32AFL1 |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| Logic Type | OR Gate | OR Gate | OR Gate |
| Number of Circuits | 4 | 4 | 4 |
| Number of Inputs | 2 | 2 | 2 |
| Features | - | - | - |
| Voltage - Supply | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V |
| Current - Quiescent (Max) | 1 µA | 1 µA | 1 µA |
| Current - Output High, Low | 5.2mA, 5.2mA | 5.2mA, 5.2mA | 5.2mA, 5.2mA |
| Logic Level - Low | 0.5V ~ 1.8V | 0.5V ~ 1.8V | 0.5V ~ 1.8V |
| Logic Level - High | 1.5V ~ 4.2V | 1.5V ~ 4.2V | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 13ns @ 6V, 50pF | 13ns @ 6V, 50pF | 13ns @ 6V, 50pF |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 14-SOIC | 14-SOIC | 14-SOIC |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) |
