Please send RFQ , we will respond immediately.

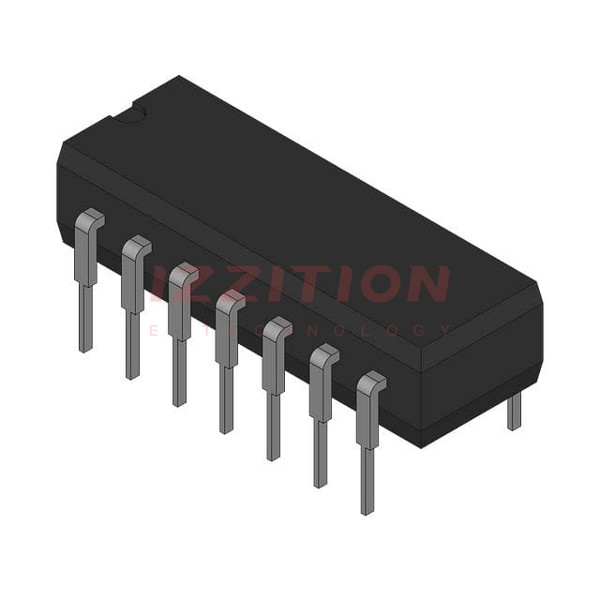

| Part Number | MC74HC107N | MC74HC109N |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| Function | Reset | Set(Preset) and Reset |
| Type | JK Type | JK Type |
| Output Type | Complementary | Complementary |
| Number of Elements | 2 | 2 |
| Number of Bits per Element | 1 | 1 |
| Clock Frequency | 60 MHz | 60 MHz |
| Max Propagation Delay @ V, Max CL | 29ns @ 6V, 50pF | 31ns @ 6V, 50pF |
| Trigger Type | Negative Edge | Positive Edge |
| Current - Output High, Low | 5.2mA, 5.2mA | 5.2mA, 5.2mA |
| Voltage - Supply | 2V ~ 6V | 2V ~ 6V |
| Current - Quiescent (Iq) | 4 µA | 4 µA |
| Input Capacitance | 10 pF | 10 pF |
| Operating Temperature | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | 14-PDIP | 16-PDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) |
