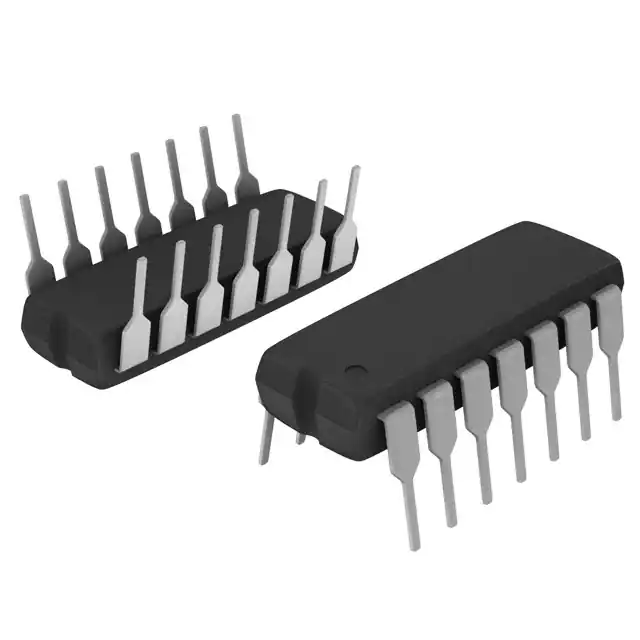

| Part Number | MC74AC00NG | MC74AC02NG | MC74AC08NG | MC74AC04NG | MC74AC05NG | MC74AC10NG | MC74AC20NG | MC74AC00DG | MC74AC00N |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active | Obsolete |
| Logic Type | NAND Gate | NOR Gate | AND Gate | Inverter | Inverter | NAND Gate | NAND Gate | NAND Gate | NAND Gate |
| Number of Circuits | 4 | 4 | 4 | 6 | 6 | 3 | 2 | 4 | 4 |
| Number of Inputs | 2 | 2 | 2 | 1 | 1 | 3 | 4 | 2 | 2 |
| Features | - | - | - | - | Open Drain | - | - | - | - |
| Voltage - Supply | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V |
| Current - Quiescent (Max) | 4 µA | 4 µA | 4 µA | 4 µA | 4 µA | 4 µA | 4 µA | 4 µA | 4 µA |
| Current - Output High, Low | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | -, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA |
| Logic Level - Low | 0.9V ~ 1.65V | 0.9V ~ 1.65V | 0.9V ~ 1.65V | 0.9V ~ 1.65V | 0.9V ~ 1.65V | 0.9V ~ 1.65V | 0.9V ~ 1.65V | 0.9V ~ 1.65V | 0.9V ~ 1.65V |
| Logic Level - High | 2.1V ~ 3.85V | 2.1V ~ 3.85V | 2.1V ~ 3.85V | 2.1V ~ 3.85V | 2.1V ~ 3.85V | 2.1V ~ 3.85V | 2.1V ~ 3.85V | 2.1V ~ 3.85V | 2.1V ~ 3.85V |
| Max Propagation Delay @ V, Max CL | 8ns @ 5V, 50pF | 6.5ns @ 5V, 50pF | 7.5ns @ 5V, 50pF | 7ns @ 5V, 50pF | 6ns @ 5V, 50pF | 7ns @ 5V, 50pF | 7ns @ 5V, 50pF | 8ns @ 5V, 50pF | 8ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount | Through Hole |
| Supplier Device Package | 14-PDIP | 14-PDIP | 14-PDIP | 14-PDIP | 14-PDIP | 14-PDIP | 14-PDIP | 14-SOIC | 14-PDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-SOIC (0.154", 3.90mm Width) | 14-DIP (0.300", 7.62mm) |
