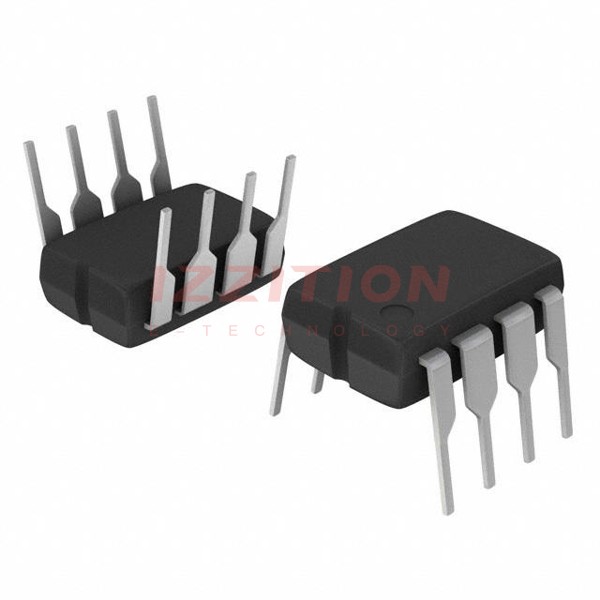

| Part Number | MC34152PG | MC33152PG | MC34151PG | MC34152DG | MC34152P |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Obsolete | Active | Obsolete |
| Driven Configuration | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side |
| Channel Type | Independent | Independent | Independent | Independent | Independent |
| Number of Drivers | 2 | 2 | 2 | 2 | 2 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 6.1V ~ 18V | 6.1V ~ 18V | 6.5V ~ 18V | 6.1V ~ 18V | 6.1V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2.6V | 0.8V, 2.6V | 0.8V, 2.6V | 0.8V, 2.6V | 0.8V, 2.6V |
| Current - Peak Output (Source, Sink) | 1.5A, 1.5A | 1.5A, 1.5A | 1.5A, 1.5A | 1.5A, 1.5A | 1.5A, 1.5A |
| Input Type | Non-Inverting | Non-Inverting | Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - | - | - |
| Rise / Fall Time (Typ) | 36ns, 32ns | 36ns, 32ns | 31ns, 32ns | 36ns, 32ns | 36ns, 32ns |
| Operating Temperature | 0°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | 0°C ~ 150°C (TJ) | 0°C ~ 150°C (TJ) | 0°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Surface Mount | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) | 8-SOIC (0.154", 3.90mm Width) | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP | 8-PDIP | 8-PDIP | 8-SOIC | 8-PDIP |
