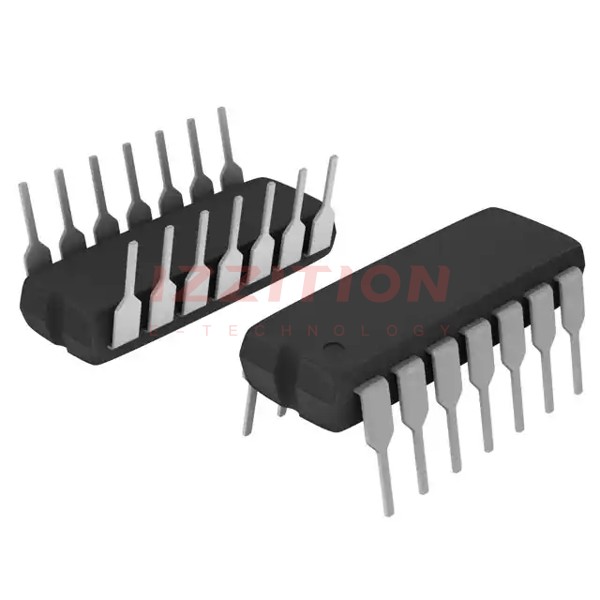

| Part Number | MC34060APG | MC33060APG | MC34060ADG | MC34060AP |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down |
| Output Configuration | Positive or Negative, Isolation Capable | Positive or Negative, Isolation Capable | Positive or Negative, Isolation Capable | Positive or Negative, Isolation Capable |
| Topology | Flyback | Flyback | Flyback | Flyback |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Output Phases | 1 | 1 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 7V ~ 40V | 7V ~ 40V | 7V ~ 40V | 7V ~ 40V |
| Frequency - Switching | 25kHz | 25kHz | 25kHz | 25kHz |
| Duty Cycle (Max) | 96% | 96% | 96% | 96% |
| Synchronous Rectifier | No | No | No | No |
| Clock Sync | No | No | No | No |
| Serial Interfaces | - | - | - | - |
| Control Features | Dead Time Control | - | Dead Time Control | Dead Time Control |
| Operating Temperature | 0°C ~ 70°C (TA) | -40°C ~ 85°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Through Hole |
| Package / Case | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-SOIC (0.154", 3.90mm Width) | 14-DIP (0.300", 7.62mm) |
| Supplier Device Package | 14-PDIP | 14-PDIP | 14-SOIC | 14-PDIP |
