Please send RFQ , we will respond immediately.

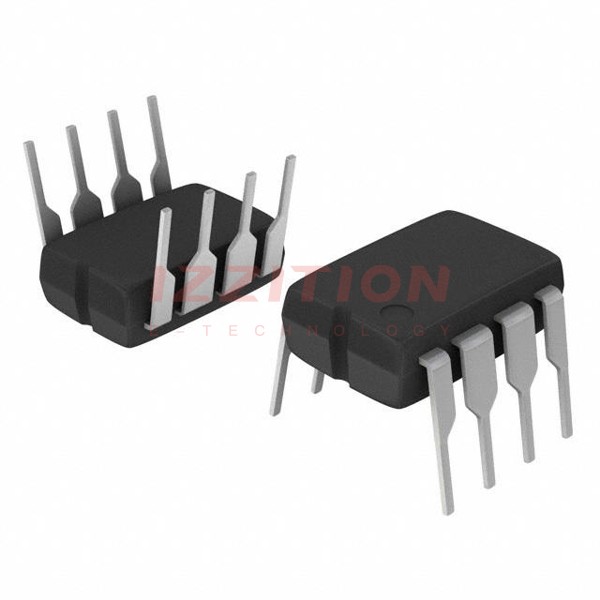

| Part Number | MC33502PG | MC33202PG | MC33502DG | MC33502P |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Amplifier Type | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Circuits | 2 | 2 | 2 | 2 |
| Output Type | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail |
| Slew Rate | 3V/µs | 1V/µs | 3V/µs | 3V/µs |
| Gain Bandwidth Product | 5 MHz | 2.2 MHz | 5 MHz | 5 MHz |
| -3db Bandwidth | - | - | - | - |
| Current - Input Bias | 0.04 pA | 80 nA | 0.04 pA | 0.04 pA |
| Voltage - Input Offset | 500 µV | 8 mV | 500 µV | 500 µV |
| Current - Supply | 1.65mA (x2 Channels) | 900µA (x2 Channels) | 1.65mA (x2 Channels) | 1.65mA (x2 Channels) |
| Current - Output / Channel | 70 mA | 80 mA | 70 mA | 70 mA |
| Voltage - Supply Span (Min) | 1 V | 1.8 V | 1 V | 1 V |
| Voltage - Supply Span (Max) | 7 V | 12 V | 7 V | 7 V |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) | 8-SOIC (0.154", 3.90mm Width) | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP | 8-PDIP | 8-SOIC | 8-PDIP |
