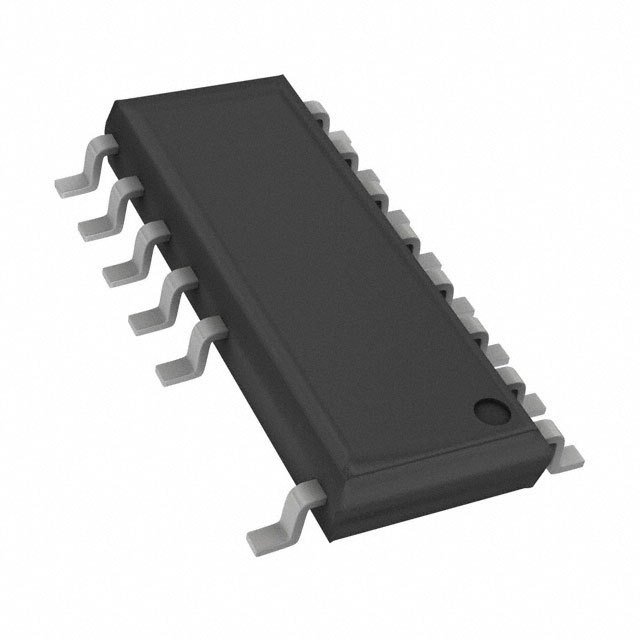

| Part Number | MC33364DG | MC33364D | MC33364D1 | MC33364D1G | MC33364D2 | MC33364D2G |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Isolation | Isolated | Isolated | Isolated | Isolated | Isolated | Isolated |
| Internal Switch(s) | No | No | No | No | No | No |
| Voltage - Breakdown | 700V | 700V | 700V | 700V | 700V | 700V |
| Topology | Flyback | Flyback | Flyback | Flyback | Flyback | Flyback |
| Voltage - Start Up | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V |
| Voltage - Supply (Vcc/Vdd) | 7.6V ~ 16V | 7.6V ~ 16V | 7.6V ~ 16V | 7.6V ~ 16V | 7.6V ~ 16V | 7.6V ~ 16V |
| Duty Cycle | - | - | - | - | - | - |
| Frequency - Switching | 126kHz | 126kHz | 126kHz | 126kHz | 126kHz | 126kHz |
| Power (Watts) | - | - | - | - | - | - |
| Fault Protection | Current Limiting, Over Temperature | Current Limiting, Over Temperature | Current Limiting, Over Temperature | Current Limiting, Over Temperature | Current Limiting, Over Temperature | Current Limiting, Over Temperature |
| Control Features | Frequency Control | Frequency Control | - | - | - | - |
| Operating Temperature | -25°C ~ 125°C (TA) | -25°C ~ 125°C (TA) | -25°C ~ 125°C (TA) | -25°C ~ 125°C (TA) | -25°C ~ 125°C (TA) | -25°C ~ 125°C (TA) |
| Package / Case | 16-SOIC (0.154", 3.90mm Width), 14 Leads | 16-SOIC (0.154", 3.90mm Width), 14 Leads | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC | 16-SOIC | 8-SOIC | 8-SOIC | 8-SOIC | 8-SOIC |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
