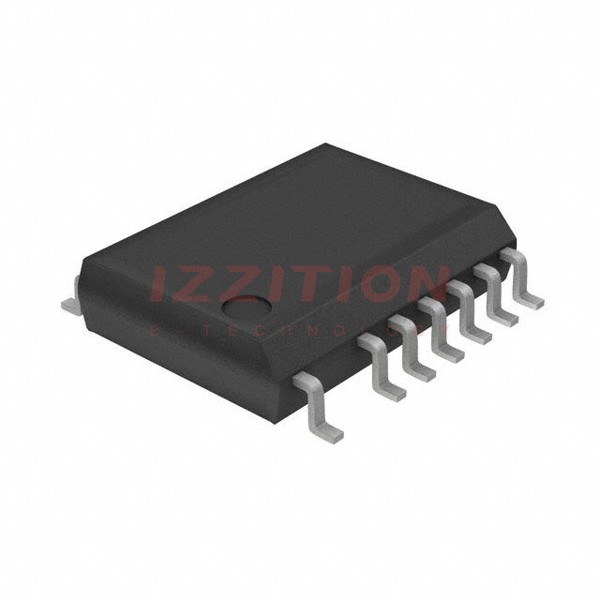

| Part Number | MC33363ADWR2 | MC33363ADWR2G | MC33363BDWR2 |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Last Time Buy | Obsolete |
| Output Isolation | Isolated | Isolated | Isolated |
| Internal Switch(s) | Yes | Yes | Yes |
| Voltage - Breakdown | 700V | 700V | 700V |
| Topology | Flyback, Forward | Flyback, Forward | Flyback, Forward |
| Voltage - Start Up | 14.9 V | 14.9 V | 15.2 V |
| Voltage - Supply (Vcc/Vdd) | 9.5V ~ 40V | 9.5V ~ 40V | 9.5V ~ 40V |
| Duty Cycle | 50% | 50% | 50% |
| Frequency - Switching | 67.5kHz ~ 285kHz | 67.5kHz ~ 285kHz | 67.5kHz ~ 285kHz |
| Power (Watts) | - | - | - |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage | Current Limiting, Over Temperature, Over Voltage | Current Limiting, Over Temperature, Over Voltage |
| Control Features | Frequency Control | Frequency Control | Frequency Control |
| Operating Temperature | -25°C ~ 150°C (TJ) | -25°C ~ 150°C (TJ) | -25°C ~ 150°C (TJ) |
| Package / Case | 16-SOIC (0.295", 7.50mm Width), 13 Leads | 16-SOIC (0.295", 7.50mm Width), 13 Leads | 16-SOIC (0.295", 7.50mm Width), 13 Leads |
| Supplier Device Package | 16-SOIC | 16-SOIC | 16-SOIC |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
