Please send RFQ , we will respond immediately.

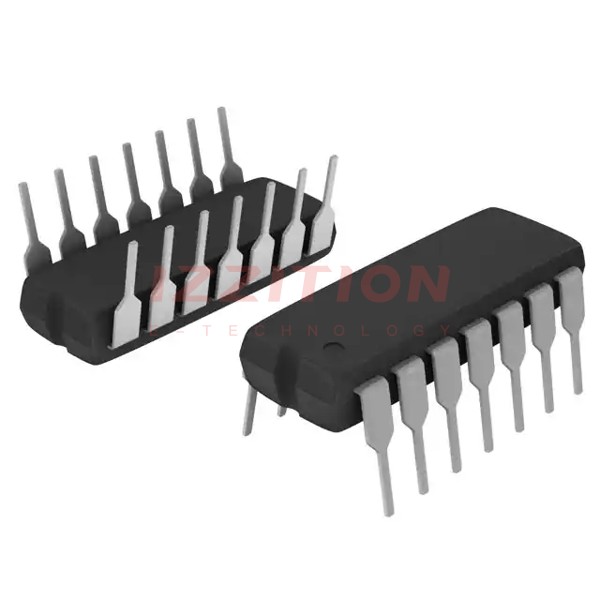

| Part Number | MC33174PG | MC33178PG | MC33179PG | MC33174VPG | MC33074PG | MC33171PG | MC33172PG | MC33174DG |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Amplifier Type | General Purpose | General Purpose | General Purpose | General Purpose | J-FET | General Purpose | General Purpose | General Purpose |
| Number of Circuits | 4 | 2 | 4 | 4 | 4 | 1 | 2 | 4 |
| Output Type | - | - | - | - | - | - | - | - |
| Slew Rate | 2.1V/µs | 2V/µs | 2V/µs | 2.1V/µs | 13V/µs | 2.1V/µs | 2.1V/µs | 2.1V/µs |
| Gain Bandwidth Product | 1.8 MHz | 5 MHz | 5 MHz | 1.8 MHz | 4.5 MHz | 1.8 MHz | 1.8 MHz | 1.8 MHz |
| -3db Bandwidth | - | - | - | - | - | - | - | - |
| Current - Input Bias | 20 nA | 100 nA | 100 nA | 20 nA | 100 nA | 20 nA | 20 nA | 20 nA |
| Voltage - Input Offset | 2 mV | 150 µV | 150 µV | 2 mV | 1 mV | 2 mV | 2 mV | 2 mV |
| Current - Supply | 180µA (x4 Channels) | - | 1.7mA (x4 Channels) | 180µA (x4 Channels) | 1.9mA (x4 Channels) | 220µA | 220µA (x2 Channels) | 180µA (x4 Channels) |
| Current - Output / Channel | 27 mA | 100 mA | 100 mA | 27 mA | 30 mA | 27 mA | 27 mA | 27 mA |
| Voltage - Supply Span (Min) | 3 V | 4 V | 4 V | 3 V | 3 V | 3 V | 3 V | 3 V |
| Voltage - Supply Span (Max) | 44 V | 36 V | 36 V | 44 V | 44 V | 44 V | 44 V | 44 V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C | -40°C ~ 85°C (TA) | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount |
| Package / Case | 14-DIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-PDIP | 8-PDIP | 14-PDIP | 14-PDIP | 14-PDIP | 8-PDIP | 8-PDIP | 14-SOIC |
