onsemi-MC33171PG - Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps Product Specifications and Latest Quotes

Part Number	MC33171PG	MC33172PG	MC33174PG	MC33178PG	MC33179PG	MC33071PG	MC33171DG	MC33171P
Manufacturer	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Amplifier Type	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose
Number of Circuits	1	2	4	2	4	1	1	1
Output Type	-	-	-	-	-	-	-	-
Slew Rate	2.1V/µs	2.1V/µs	2.1V/µs	2V/µs	2V/µs	13V/µs	2.1V/µs	2.1V/µs
Gain Bandwidth Product	1.8 MHz	1.8 MHz	1.8 MHz	5 MHz	5 MHz	4.5 MHz	1.8 MHz	1.8 MHz
-3db Bandwidth	-	-	-	-	-	-	-	-
Current - Input Bias	20 nA	20 nA	20 nA	100 nA	100 nA	100 nA	20 nA	20 nA
Voltage - Input Offset	2 mV	2 mV	2 mV	150 µV	150 µV	1 mV	2 mV	2 mV
Current - Supply	220µA	220µA (x2 Channels)	180µA (x4 Channels)	-	1.7mA (x4 Channels)	1.9mA	220µA	220µA
Current - Output / Channel	27 mA	27 mA	27 mA	100 mA	100 mA	30 mA	27 mA	27 mA
Voltage - Supply Span (Min)	3 V	3 V	3 V	4 V	4 V	3 V	3 V	3 V
Voltage - Supply Span (Max)	44 V	44 V	44 V	36 V	36 V	44 V	44 V	44 V
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C (TA)	-40°C ~ 85°C (TA)	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Surface Mount	Through Hole
Package / Case	8-DIP (0.300", 7.62mm)	8-DIP (0.300", 7.62mm)	14-DIP (0.300", 7.62mm)	8-DIP (0.300", 7.62mm)	14-DIP (0.300", 7.62mm)	8-DIP (0.300", 7.62mm)	8-SOIC (0.154", 3.90mm Width)	8-DIP (0.300", 7.62mm)
Supplier Device Package	8-PDIP	8-PDIP	14-PDIP	8-PDIP	14-PDIP	8-PDIP	8-SOIC	8-PDIP

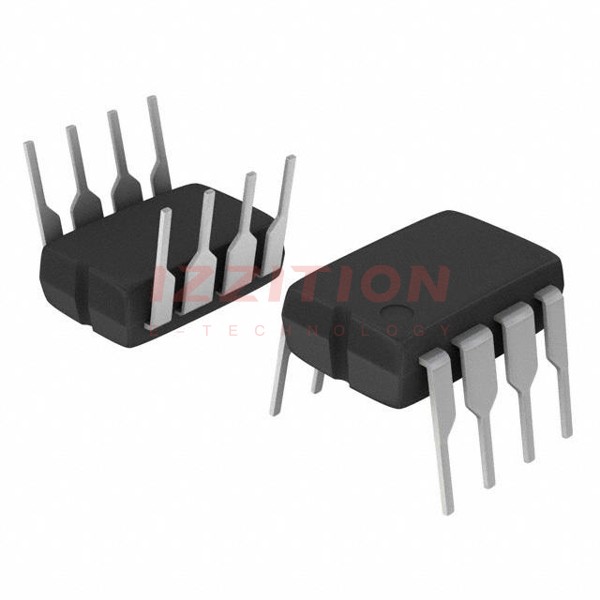

onsemi MC33171PG
