onsemi-MC33079PG - Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps Product Specifications and Latest Quotes

Part Number	MC33079PG	MC33179PG	MC33071PG	MC33072PG	MC33074PG	MC33077PG	MC33078PG	MC33079DG
Manufacturer	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Active
Amplifier Type	General Purpose	General Purpose	General Purpose	J-FET	J-FET	General Purpose	General Purpose	General Purpose
Number of Circuits	4	4	1	2	4	2	2	4
Output Type	-	-	-	-	-	-	-	-
Slew Rate	7V/µs	2V/µs	13V/µs	13V/µs	13V/µs	11V/µs	7V/µs	7V/µs
Gain Bandwidth Product	16 MHz	5 MHz	4.5 MHz	4.5 MHz	4.5 MHz	37 MHz	16 MHz	16 MHz
-3db Bandwidth	-	-	-	-	-	-	-	-
Current - Input Bias	300 nA	100 nA	100 nA	100 nA	100 nA	280 nA	300 nA	300 nA
Voltage - Input Offset	150 µV	150 µV	1 mV	1 mV	1 mV	130 µV	150 µV	150 µV
Current - Supply	8.4mA	1.7mA (x4 Channels)	1.9mA	1.9mA (x2 Channels)	1.9mA (x4 Channels)	3.5mA	4.1mA	8.4mA
Current - Output / Channel	37 mA	100 mA	30 mA	30 mA	30 mA	33 mA	37 mA	37 mA
Voltage - Supply Span (Min)	10 V	4 V	3 V	3 V	3 V	5 V	10 V	10 V
Voltage - Supply Span (Max)	36 V	36 V	44 V	44 V	44 V	36 V	36 V	36 V
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C (TA)	-40°C ~ 85°C	-40°C ~ 85°C (TA)	-40°C ~ 85°C (TA)	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Surface Mount
Package / Case	14-DIP (0.300", 7.62mm)	14-DIP (0.300", 7.62mm)	8-DIP (0.300", 7.62mm)	8-DIP (0.300", 7.62mm)	14-DIP (0.300", 7.62mm)	8-DIP (0.300", 7.62mm)	8-DIP (0.300", 7.62mm)	14-SOIC (0.154", 3.90mm Width)
Supplier Device Package	14-PDIP	14-PDIP	8-PDIP	8-PDIP	14-PDIP	8-PDIP	8-PDIP	14-SOIC

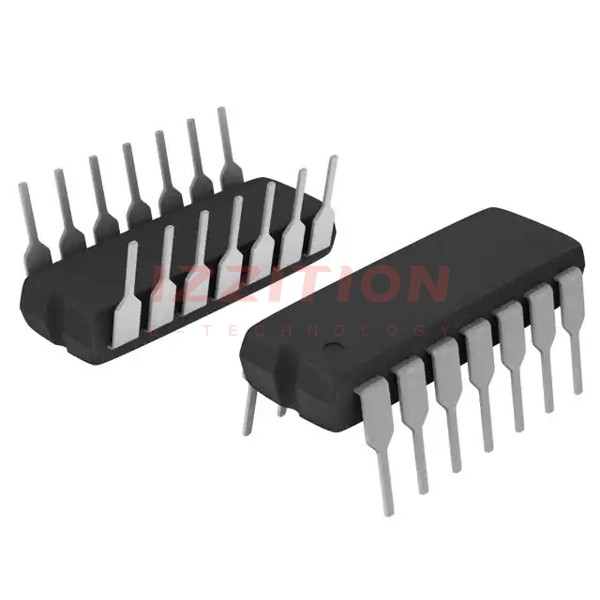

onsemi MC33079PG
