Please send RFQ , we will respond immediately.

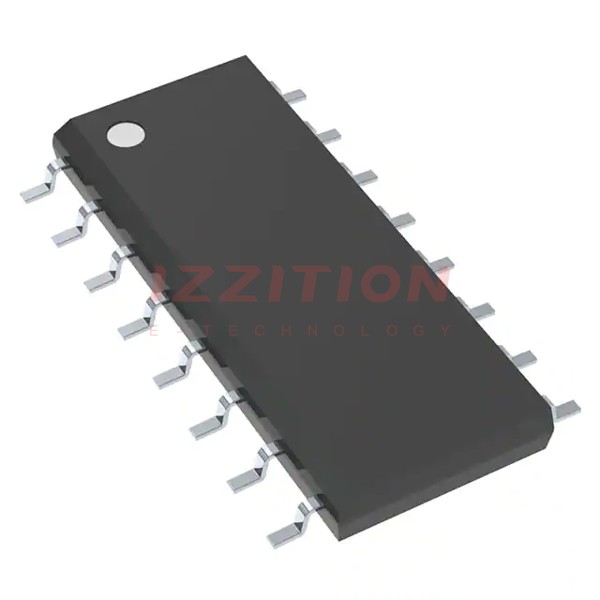

| Part Number | MC14504BDG | MC14504BDTG | MC14504BDT | MC14504BFG | MC14504BD |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Obsolete | Obsolete | Active |
| Translator Type | Voltage Level | Voltage Level | Voltage Level | Voltage Level | Voltage Level |
| Channel Type | Unidirectional | Unidirectional | Unidirectional | Unidirectional | Unidirectional |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 |
| Channels per Circuit | 6 | 6 | 6 | 6 | 6 |
| Voltage - VCCA | 3 V ~ 18 V | 3 V ~ 18 V | 3 V ~ 18 V | 3 V ~ 18 V | 3 V ~ 18 V |
| Voltage - VCCB | 3 V ~ 18 V | 3 V ~ 18 V | 3 V ~ 18 V | 3 V ~ 18 V | 3 V ~ 18 V |
| Input Signal | - | - | - | - | - |
| Output Signal | - | - | - | - | - |
| Output Type | Non-Inverted | Non-Inverted | Non-Inverted | Non-Inverted | Non-Inverted |
| Data Rate | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) | 16-TSSOP (0.173", 4.40mm Width) | 16-TSSOP (0.173", 4.40mm Width) | 16-SOIC (0.209", 5.30mm Width) | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC | 16-TSSOP | 16-TSSOP | 16-SOEIAJ | 16-SOIC |
