| Part Number | MC14001BCPG | MC14001UBCPG | MC14011BCPG | MC14071BCPG |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Logic Type | NOR Gate | NOR Gate | NAND Gate | OR Gate |
| Number of Circuits | 4 | 4 | 4 | 4 |
| Number of Inputs | 2 | 2 | 2 | 2 |
| Features | - | - | - | - |
| Voltage - Supply | 3V ~ 18V | 3V ~ 18V | 3V ~ 18V | 3V ~ 18V |
| Current - Quiescent (Max) | 1 µA | 1 µA | 1 µA | 1 µA |
| Current - Output High, Low | 8.8mA, 8.8mA | 3.5mA, 8.8mA | 8.8mA, 8.8mA | 8.8mA, 8.8mA |
| Logic Level - Low | 1.5V ~ 4V | 1V ~ 2.5V | 1.5V ~ 4V | 1.5V ~ 4V |
| Logic Level - High | 3.5V ~ 11V | 4V ~ 12.5V | 3.5V ~ 11V | 3.5V ~ 11V |
| Max Propagation Delay @ V, Max CL | 80ns @ 15V, 50pF | 80ns @ 15V, 50pF | 80ns @ 15V, 50pF | 100ns @ 15V, 50pF |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |

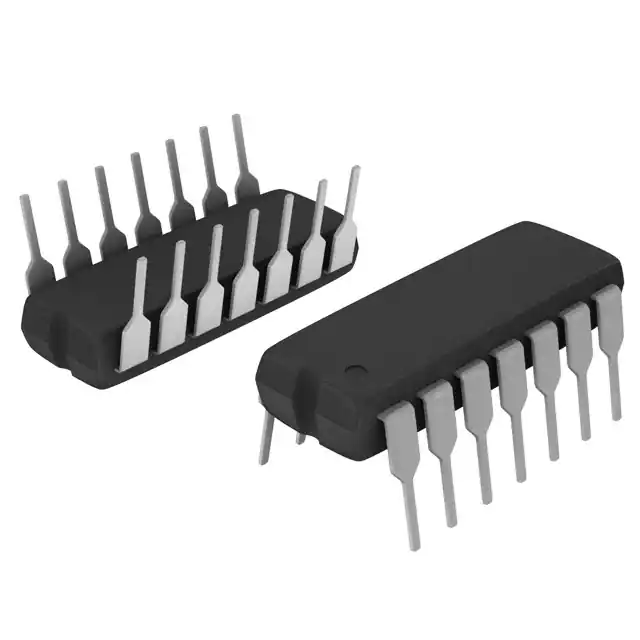

| Supplier Device Package | 14-PDIP | 14-PDIP | 14-PDIP | 14-PDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) |
