Please send RFQ , we will respond immediately.

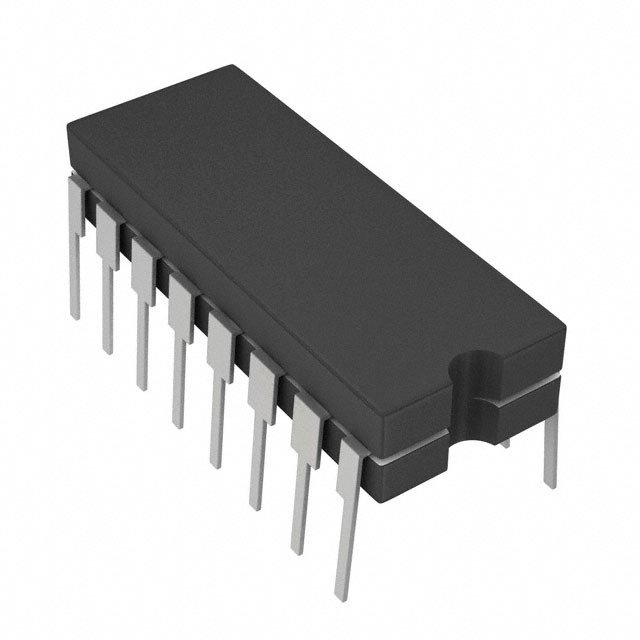

| Part Number | MC10H123L | MC10H123P | MC10123L | MC10H103L | MC10H113L |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Active | Obsolete | Obsolete |
| Logic Type | NOR Gate | NOR Gate | - | OR Gate | XOR (Exclusive OR) |
| Number of Circuits | 3 | 3 | - | 4 | 4 |
| Number of Inputs | 4, 3, 3 | 4, 3, 3 | - | 2 | 2 |
| Features | - | - | - | 1 of 4 OR/NOR Output | - |
| Voltage - Supply | -4.94V ~ -5.46V | -4.94V ~ -5.46V | - | -4.94V ~ -5.46V | -4.94V ~ -5.46V |
| Current - Quiescent (Max) | - | - | - | - | - |
| Current - Output High, Low | 50mA, 50mA | 50mA, 50mA | - | 50mA, 50mA | 50mA, 50mA |
| Logic Level - Low | -1.48V | -1.48V | - | -1.48V | -1.48V |
| Logic Level - High | -1.13V | -1.13V | - | -1.13V | -1.13V |
| Max Propagation Delay @ V, Max CL | 1.6ns @ -5.2V, - | 1.6ns @ -5.2V, - | - | 1.3ns @ -5.2V, - | 1.8ns @ -5.2V, - |
| Operating Temperature | 0°C ~ 75°C | 0°C ~ 75°C | - | 0°C ~ 75°C | 0°C ~ 75°C |
| Mounting Type | Through Hole | Through Hole | - | Through Hole | Through Hole |
| Supplier Device Package | 16-CDIP | 16-PDIP | - | 16-CDIP | 16-CDIP |
| Package / Case | 16-CDIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | - | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) |
