Please send RFQ , we will respond immediately.

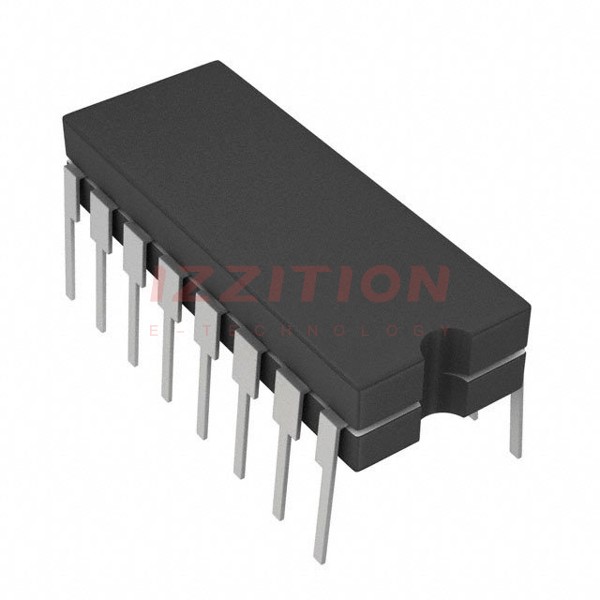

| Part Number | MC10H106L | MC10H106M | MC10H106P | MC10H100L | MC10H102L | MC10H103L | MC10H104L |
|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Logic Type | NOR Gate | NOR Gate | NOR Gate | NOR Gate | NOR Gate | OR Gate | AND Gate |
| Number of Circuits | 3 | 3 | 3 | 4 | 4 | 4 | 4 |
| Number of Inputs | 4, 3, 3 | 4, 3, 3 | 4, 3, 3 | 2 | 2 | 2 | 2 |
| Features | - | - | - | Strobe | 1 of 4 OR/NOR Output | 1 of 4 OR/NOR Output | 1 of 4 AND/NAND Output |
| Voltage - Supply | -4.94V ~ -5.46V | -4.94V ~ -5.46V | -4.94V ~ -5.46V | -4.94V ~ -5.46V | -4.94V ~ -5.46V | -4.94V ~ -5.46V | -4.94V ~ -5.46V |
| Current - Quiescent (Max) | - | - | - | - | - | - | - |
| Current - Output High, Low | 50mA, 50mA | 50mA, 50mA | 50mA, 50mA | 50mA, 50mA | 50mA, 50mA | 50mA, 50mA | 50mA, 50mA |
| Logic Level - Low | -1.48V | -1.48V | -1.48V | -1.48V | -1.48V | -1.48V | -1.48V |
| Logic Level - High | -1.13V | -1.13V | -1.13V | -1.13V | -1.13V | -1.13V | -1.13V |
| Max Propagation Delay @ V, Max CL | 1.5ns @ -5.2V, - | 1.5ns @ -5.2V, - | 1.5ns @ -5.2V, - | 1.7ns @ -5.2V, - | 1.25ns @ -5.2V, - | 1.3ns @ -5.2V, - | 1.75ns @ -5.2V, - |
| Operating Temperature | 0°C ~ 75°C | 0°C ~ 75°C | 0°C ~ 75°C | 0°C ~ 75°C | 0°C ~ 75°C | 0°C ~ 75°C | 0°C ~ 75°C |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | 16-CDIP | 16-SOEIAJ | 16-PDIP | 16-CDIP | 16-CDIP | 16-CDIP | 16-CDIP |
| Package / Case | 16-CDIP (0.300", 7.62mm) | 16-SOIC (0.209", 5.30mm Width) | 16-DIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) |
