Please send RFQ , we will respond immediately.

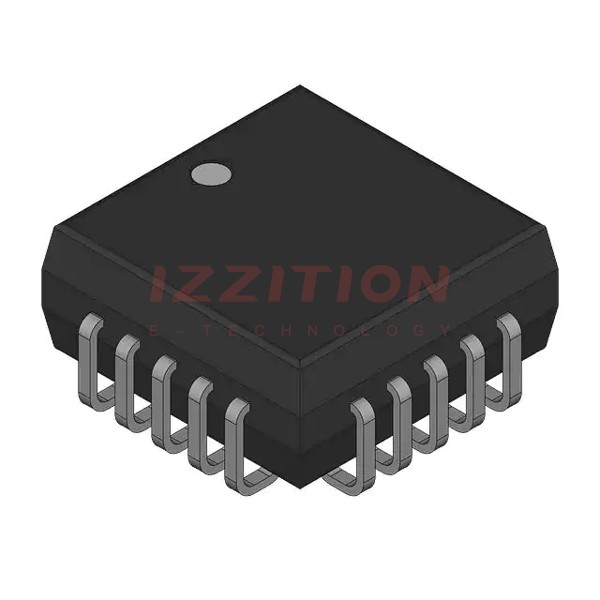

| Part Number | MC10104FNR2 | MC10105FNR2 | MC10H104FNR2 | MC10102FNR2 |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Obsolete | Active |
| Logic Type | - | - | AND Gate | - |
| Number of Circuits | - | - | 4 | - |
| Number of Inputs | - | - | 2 | - |
| Features | - | - | 1 of 4 AND/NAND Output | - |
| Voltage - Supply | - | - | -4.94V ~ -5.46V | - |
| Current - Quiescent (Max) | - | - | - | - |
| Current - Output High, Low | - | - | 50mA, 50mA | - |
| Logic Level - Low | - | - | -1.48V | - |
| Logic Level - High | - | - | -1.13V | - |
| Max Propagation Delay @ V, Max CL | - | - | 1.75ns @ -5.2V, - | - |
| Operating Temperature | - | - | 0°C ~ 75°C | - |
| Mounting Type | - | - | Surface Mount | - |
| Supplier Device Package | - | - | 20-PLCC (9x9) | - |
| Package / Case | - | - | 20-LCC (J-Lead) | - |
