onsemi-MBRB8H100T4G - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	100 V
Current - Average Rectified (Io):	8A
Voltage - Forward (Vf) (Max) @ If:	710 mV @ 8 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	4.5 µA @ 100 V
Capacitance @ Vr, F:	600pF @ 4V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package:	D²PAK
Operating Temperature - Junction:	-65°C ~ 175°C

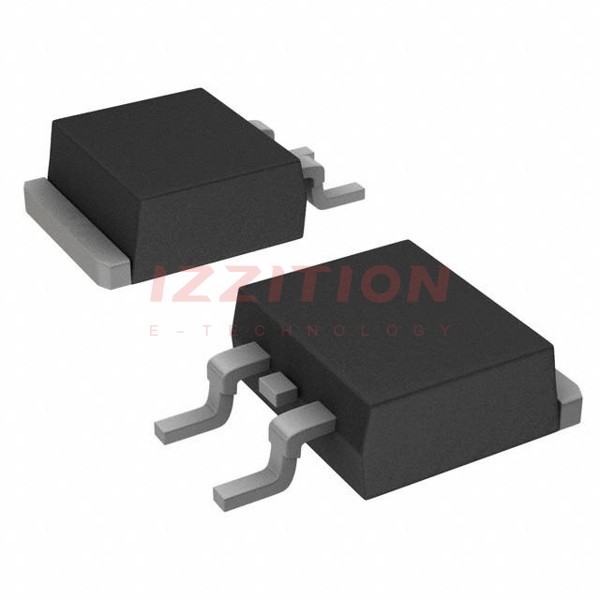

onsemi MBRB8H100T4G
