Please send RFQ , we will respond immediately.

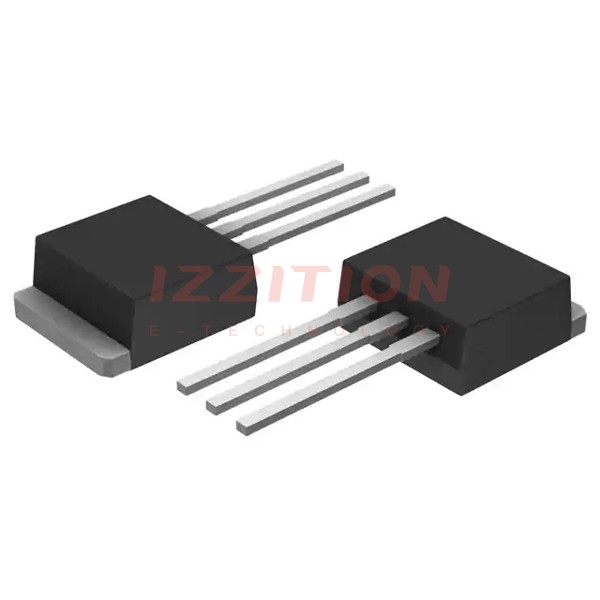

| Part Number | MBRB30H80CT-1G | MBRB30H30CT-1G | MBRB30H60CT-1G |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 80 V | 30 V | 60 V |
| Current - Average Rectified (Io) (per Diode) | 15A | 15A | 15A |
| Voltage - Forward (Vf) (Max) @ If | 780 mV @ 15 A | 480 mV @ 15 A | 620 mV @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 250 µA @ 80 V | 800 µA @ 30 V | 300 µA @ 60 V |
| Operating Temperature - Junction | -20°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 175°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA |
| Supplier Device Package | I2PAK (TO-262) | I2PAK (TO-262) | I2PAK (TO-262) |
