onsemi-MBRAF3200T3G - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	200 V
Current - Average Rectified (Io):	3A
Voltage - Forward (Vf) (Max) @ If:	840 mV @ 3 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	1 mA @ 200 V
Capacitance @ Vr, F:	-
Mounting Type:	Surface Mount
Package / Case:	DO-221AC, SMA Flat Leads
Supplier Device Package:	SMA-FL
Operating Temperature - Junction:	-65°C ~ 150°C

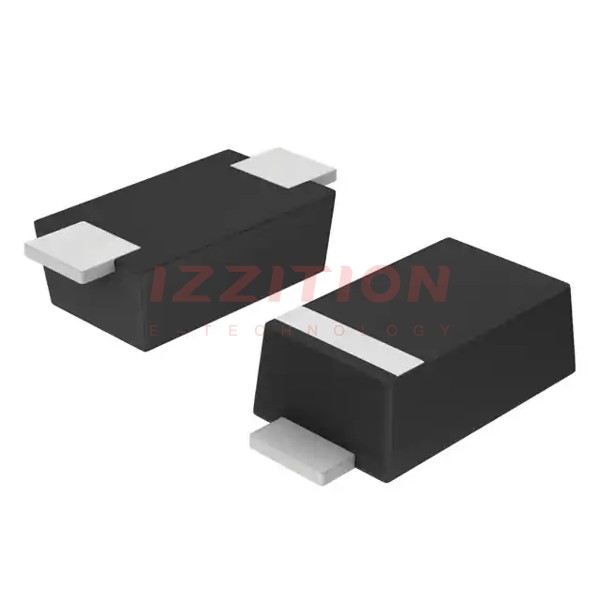

onsemi MBRAF3200T3G
