onsemi-MBRAF1540T3G - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	40 V
Current - Average Rectified (Io):	1.5A
Voltage - Forward (Vf) (Max) @ If:	460 mV @ 1.5 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	800 µA @ 40 V
Capacitance @ Vr, F:	-
Mounting Type:	Surface Mount
Package / Case:	DO-221AC, SMA Flat Leads
Supplier Device Package:	SMA-FL
Operating Temperature - Junction:	-55°C ~ 150°C

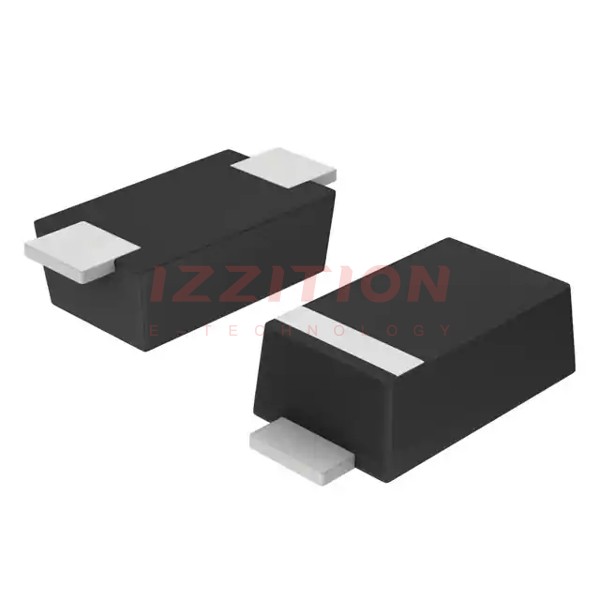

onsemi MBRAF1540T3G
