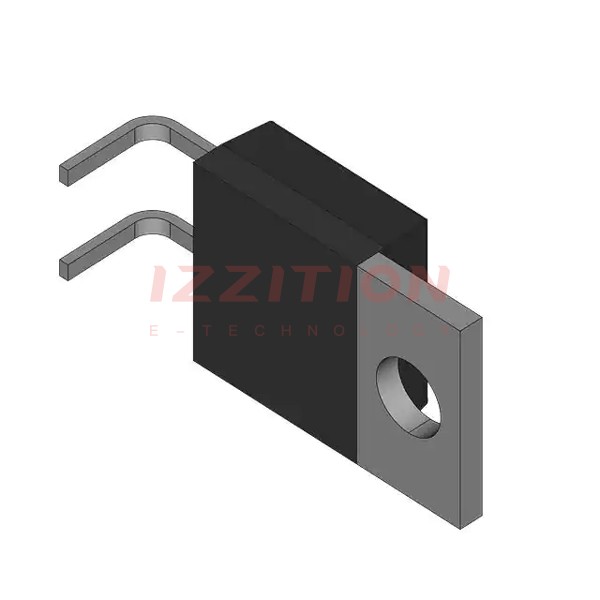

| Part Number | MBR845 | MBR745 | MBR8045 | MBR835 |
|---|---|---|---|---|
| Manufacturer | onsemi | SMC Diode Solutions | GeneSiC Semiconductor | onsemi |
| Product Status | Obsolete | Active | Active | Obsolete |
| Diode Type | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 45 V | 45 V | 45 V | 35 V |
| Current - Average Rectified (Io) | 8A | 7.5A | 80A | 8A |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 8 A | 570 mV @ 7.5 A | 650 mV @ 80 A | 550 mV @ 8 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - |
| Current - Reverse Leakage @ Vr | 1 mA @ 45 V | 1 mA @ 45 V | 1 mA @ 45 V | 1 mA @ 35 V |
| Capacitance @ Vr, F | - | 400pF @ 5V, 1MHz | - | - |
| Mounting Type | Through Hole | Through Hole | Chassis, Stud Mount | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial | TO-220-2 | DO-203AB, DO-5, Stud | DO-201AA, DO-27, Axial |
| Supplier Device Package | Axial | TO-220AC | DO-5 | Axial |
| Operating Temperature - Junction | -65°C ~ 125°C | -55°C ~ 150°C | -55°C ~ 150°C | -65°C ~ 125°C |
