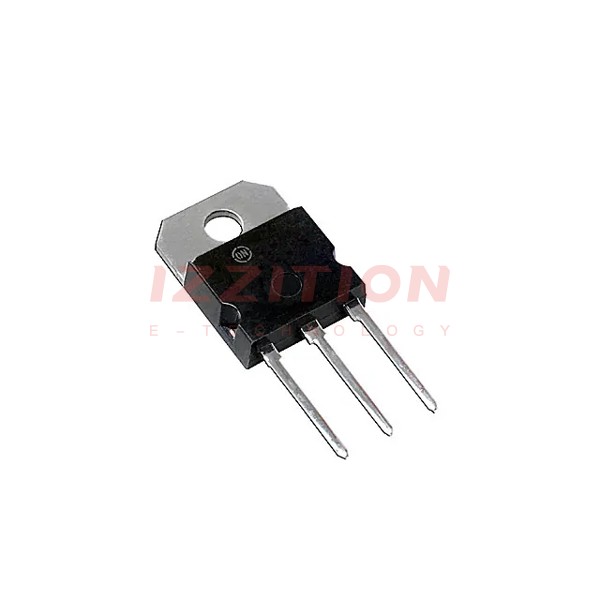

| Part Number | MBR6045PTG | MBR6045WTG | MBR6045PT |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | Taiwan Semiconductor Corporation |
| Product Status | Obsolete | Obsolete | Active |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 45 V | 45 V | 45 V |
| Current - Average Rectified (Io) (per Diode) | 30A | 30A | 60A |
| Voltage - Forward (Vf) (Max) @ If | 620 mV @ 30 A | 620 mV @ 30 A | 820 mV @ 60 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 1 mA @ 45 V | 1 mA @ 45 V | 1 mA @ 45 V |
| Operating Temperature - Junction | -65°C ~ 175°C | -65°C ~ 175°C | -55°C ~ 150°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-218-3 | TO-247-3 | TO-247-3 |
| Supplier Device Package | SOT-93 | TO-247-3 | TO-247AD (TO-3P) |
