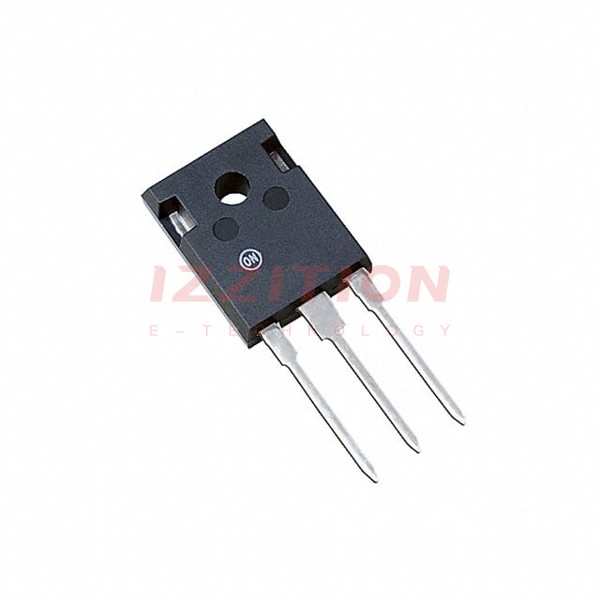

| Part Number | MBR4045WTG | MBR4045PTG | MBR4045WT |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | SMC Diode Solutions |
| Product Status | Obsolete | Obsolete | Active |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 45 V | 45 V | 45 V |
| Current - Average Rectified (Io) (per Diode) | 20A | 20A | - |
| Voltage - Forward (Vf) (Max) @ If | 700 mV @ 20 A | 700 mV @ 20 A | 700 mV @ 20 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 1 mA @ 45 V | 1 mA @ 45 V | 1 mA @ 45 V |
| Operating Temperature - Junction | -65°C ~ 175°C | -65°C ~ 175°C | -55°C ~ 150°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-218-3 | TO-247-3 |
| Supplier Device Package | TO-247-3 | SOT-93 | TO-247AD |
