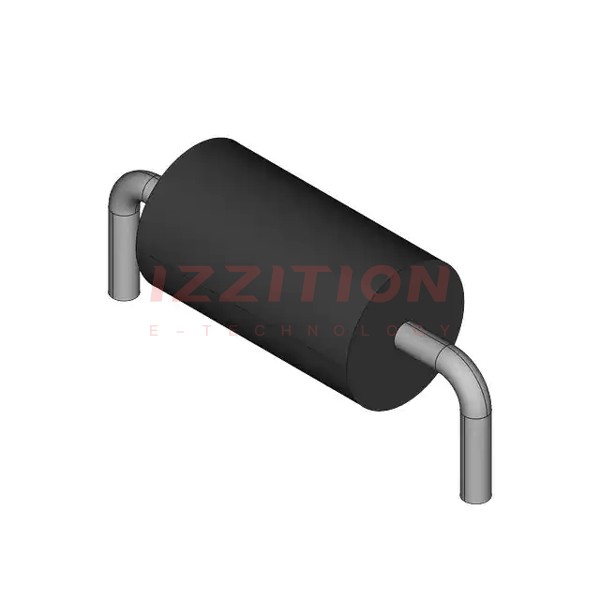

| Part Number | MBR350 | MBR750 | MBR390 | MBR3540 | MBR360 | MBR340 |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | Motorola | GeneSiC Semiconductor | Diotec Semiconductor | onsemi |
| Product Status | Obsolete | Active | Obsolete | Active | Active | Obsolete |
| Diode Type | Schottky | Schottky | - | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 50 V | 50 V | - | 40 V | 60 V | 40 V |
| Current - Average Rectified (Io) | 3A | 7.5A | - | 35A | 3A | 3A |
| Voltage - Forward (Vf) (Max) @ If | 740 mV @ 3 A | 750 mV @ 7.5 A | - | 680 mV @ 35 A | 740 mV @ 3 A | 600 mV @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | - | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 600 µA @ 50 V | 500 µA @ 50 V | - | 1.5 mA @ 20 V | 500 µA @ 60 V | 600 µA @ 40 V |
| Capacitance @ Vr, F | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | - | Chassis, Stud Mount | Through Hole | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial | TO-220-2 | - | DO-203AA, DO-4, Stud | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial |
| Supplier Device Package | Axial | TO-220-2L | - | DO-4 | DO-201 | Axial |
| Operating Temperature - Junction | -65°C ~ 150°C | -65°C ~ 150°C | - | -55°C ~ 150°C | -50°C ~ 150°C | -65°C ~ 175°C |
