Please send RFQ , we will respond immediately.

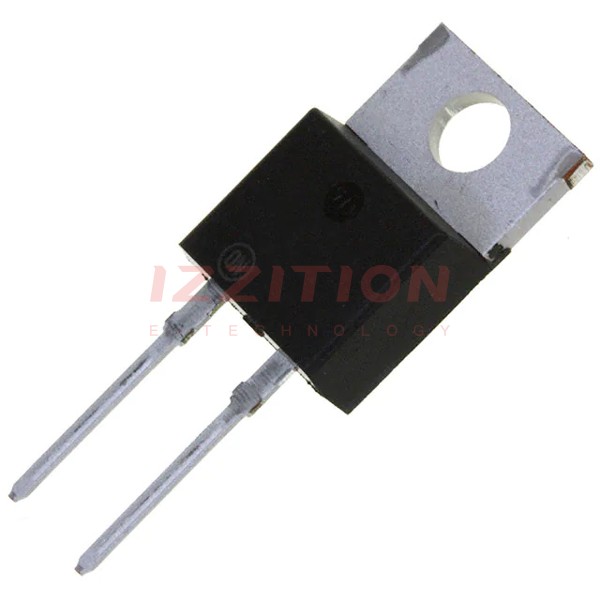

| Part Number | MBR1060G | MBR160G | MBR1060S | MBR1090G | MBR1080G | MBR1060H | MBR1060 |
|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | SMC Diode Solutions | onsemi | onsemi | onsemi | SMC Diode Solutions |
| Product Status | Active | Active | Active | Obsolete | Obsolete | Obsolete | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 60 V | 60 V | 60 V | 90 V | 80 V | 60 V | 60 V |
| Current - Average Rectified (Io) | 10A | 1A | 10A | 10A | 10A | 10A | - |
| Voltage - Forward (Vf) (Max) @ If | 800 mV @ 10 A | 750 mV @ 1 A | 630 mV @ 10 A | 800 mV @ 10 A | 800 mV @ 10 A | 800 mV @ 10 A | 800 mV @ 10 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 100 µA @ 60 V | 500 µA @ 60 V | 1 mA @ 60 V | 100 µA @ 90 V | 100 µA @ 80 V | 100 µA @ 60 V | 1 mA @ 60 V |
| Capacitance @ Vr, F | - | - | 850pF @ 5V, 1MHz | - | - | - | 400pF @ 5V, 1MHz |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-2 | DO-204AL, DO-41, Axial | TO-277, 3-PowerDFN | TO-220-2 | TO-220-2 | TO-220-2 | TO-220-2 |
| Supplier Device Package | TO-220-2 | Axial | TO-277B | TO-220-2 | TO-220-2 | TO-220-2 | TO-220AC |
| Operating Temperature - Junction | -65°C ~ 175°C | -65°C ~ 150°C | -55°C ~ 150°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -55°C ~ 150°C |
