onsemi-MB4S - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	MB4S	MB6S	MD4S	MB8S	MB1S	MB2S	MB3S	MB4F
Manufacturer	onsemi	SMC Diode Solutions	Rectron USA	onsemi	onsemi	onsemi	Rectron USA	SMC Diode Solutions
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	400 V	600 V	400 V	800 V	100 V	200 V	200 V	400 V
Current - Average Rectified (Io)	500 mA	500 mA	800 mA	500 mA	500 mA	500 mA	500 mA	500 mA
Voltage - Forward (Vf) (Max) @ If	1 V @ 500 mA	1 V @ 500 mA	1 V @ 400 mA	1 V @ 500 mA	1 V @ 500 mA	1 V @ 500 mA	1.05 V @ 500 mA	1.1 V @ 800 mA
Current - Reverse Leakage @ Vr	5 µA @ 400 V	5 µA @ 600 V	1 µA @ 400 V	5 µA @ 800 V	5 µA @ 100 V	5 µA @ 200 V	5 µA @ 200 V	5 µA @ 400 V
Operating Temperature	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	TO-269AA, 4-BESOP	4-SMD, Gull Wing	4-SMD, Gull Wing	TO-269AA, 4-BESOP	TO-269AA, 4-BESOP	TO-269AA, 4-BESOP	4-SMD, Gull Wing	4-SMD, Gull Wing
Supplier Device Package	4-SOIC	MBS	MD-S	4-SOIC	4-SOIC	4-SOIC	MD-S	MBF

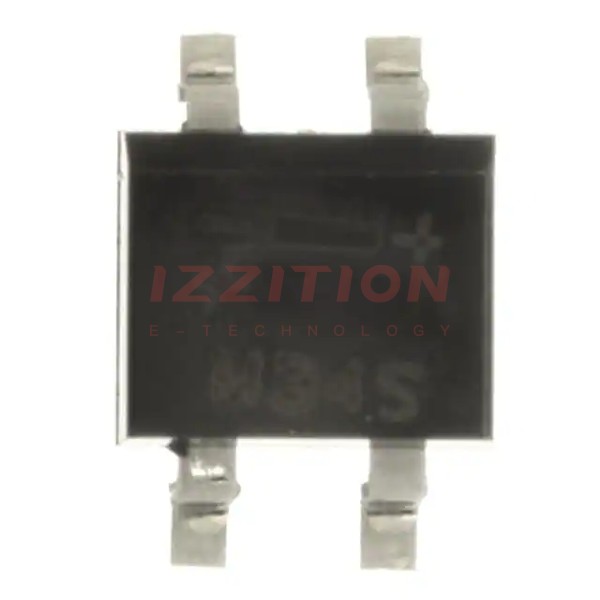

onsemi MB4S

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	400 V
Current - Average Rectified (Io):	500 mA
Voltage - Forward (Vf) (Max) @ If:	1 V @ 500 mA
Current - Reverse Leakage @ Vr:	5 µA @ 400 V
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-269AA, 4-BESOP
Supplier Device Package:	4-SOIC
