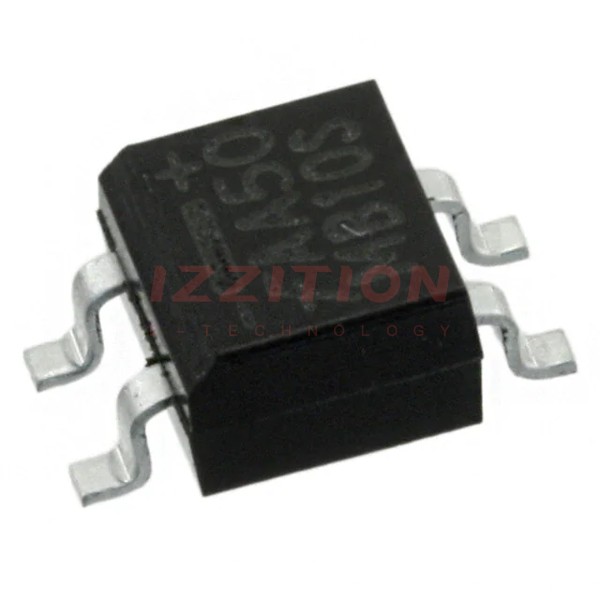

| Part Number | MB10S | MB1S | MB110S | MB101 | MB102 | MB104 | MB106 | MB108 | MB10F |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | MDD | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co | SMC Diode Solutions |
| Product Status | Active | Active | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Diode Type | Single Phase | Single Phase | Single Phase | Single Phase | Single Phase | Single Phase | Single Phase | Single Phase | Single Phase |
| Technology | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - Peak Reverse (Max) | 1 kV | 100 V | 100 V | 100 V | 200 V | 400 V | 600 V | 800 V | 1 kV |
| Current - Average Rectified (Io) | 500 mA | 500 mA | 1 A | 10 A | 10 A | 10 A | 10 A | 10 A | 500 mA |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 500 mA | 1 V @ 500 mA | 900 mV @ 1 A | 1.1 V @ 5 A | 1.1 V @ 5 A | 1.1 V @ 5 A | 1.1 V @ 5 A | 1.1 V @ 5 A | 1.1 V @ 800 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 1000 V | 5 µA @ 100 V | 500 µA @ 100 V | 10 µA @ 100 V | 10 µA @ 200 V | 10 µA @ 400 V | 10 µA @ 600 V | 10 µA @ 800 V | 5 µA @ 1000 V |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount |
| Package / Case | TO-269AA, 4-BESOP | TO-269AA, 4-BESOP | 4-SMD, Gull Wing | 4-Square, BR-6 | 4-Square, BR-6 | 4-Square, BR-6 | 4-Square, BR-6 | 4-Square, BR-6 | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SOIC | 4-SOIC | MBS | BR-6 | BR-6 | BR-6 | BR-6 | BR-6 | MBF |
