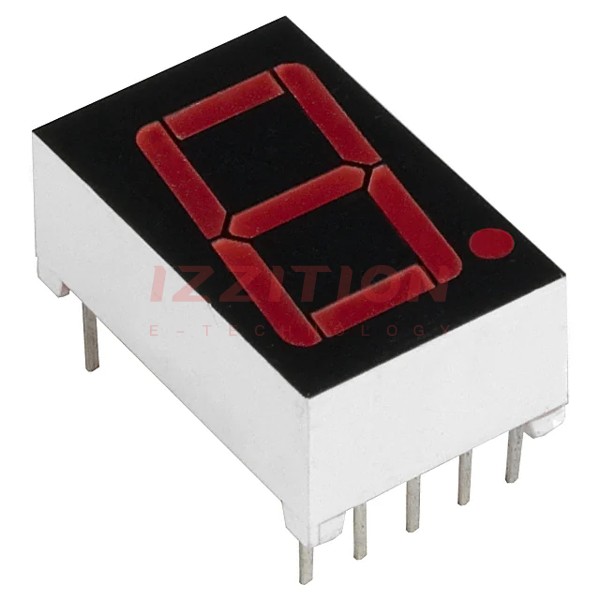

| Part Number | MAN6780 | MAN6680 | MAN6740 |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Display Format | - | - | - |
| Number of Characters | 1 | 1 | 2 |
| Size / Dimension | 0.750" H x 0.480" W x 0.315" D (19.05mm x 12.20mm x 8.00mm) | 0.750" H x 0.480" W x 0.315" D (19.05mm x 12.20mm x 8.00mm) | 0.750" H x 0.985" W x 0.315" D (19.05mm x 25.02mm x 8.00mm) |
| Digit/Alpha Size | 0.56" (14.22mm) | 0.56" (14.22mm) | 0.56" (14.22mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Cathode | Common Cathode | Common Cathode |
| Color | Red | Orange | Red |
| Voltage - Forward (Vf) (Typ) | 2V (Max) | 2.5V (Max) | 2V (Max) |
| Current - Test | 20mA | 20mA | 20mA |
| Millicandela Rating | 0.42mcd | 2.2mcd | 0.42mcd |
| Wavelength - Peak | 650nm | 630nm | 650nm |
| Power Dissipation (Max) | 480mW | 600mW | 960mW |
| Package / Case | 10-DIP (0.600", 15.24mm) | 10-DIP (0.600", 15.24mm) | 18-DIP (0.600", 15.24mm) |
