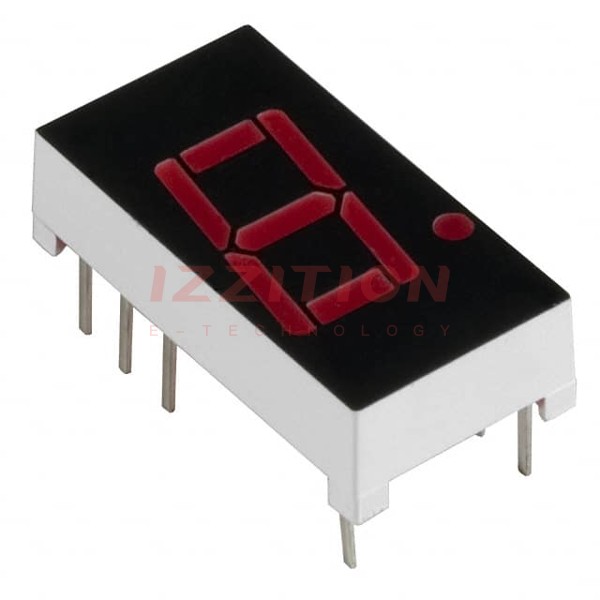

| Part Number | MAN4710A | MAN4740A | MAN4410A | MAN4610A |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Display Format | - | - | - | - |
| Number of Characters | 1 | 1 | 1 | 1 |
| Size / Dimension | 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm) | 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm) | 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm) | 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm) |
| Digit/Alpha Size | 0.40" (10.16mm) | 0.40" (10.16mm) | 0.40" (10.16mm) | 0.40" (10.16mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Anode | Common Cathode | Common Anode | Common Anode |
| Color | Red | Red | Green | Orange |
| Voltage - Forward (Vf) (Typ) | 1.6V | 1.6V | 2.2V | 2.2V |
| Current - Test | 20mA | 20mA | 20mA | 20mA |
| Millicandela Rating | 0.35mcd | 0.35mcd | 3.2mcd | 1.8mcd |
| Wavelength - Peak | 660nm | 660nm | 562nm | 630nm |
| Power Dissipation (Max) | 480mW | 480mW | 600mW | 600mW |
| Package / Case | 14-DIP (0.300", 7.62mm), 10 Leads | 14-DIP (0.300", 7.62mm), 11 Leads | 14-DIP (0.300", 7.62mm), 10 Leads | 14-DIP (0.300", 7.62mm), 10 Leads |
