Please send RFQ , we will respond immediately.

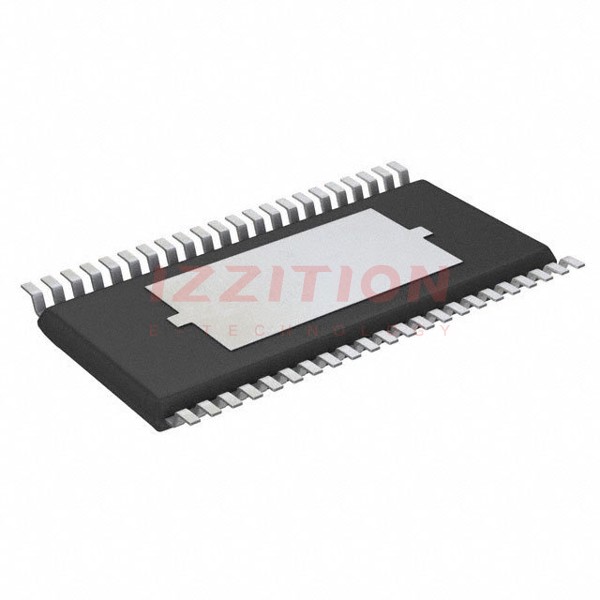

| Part Number | LV8741V-TLM-E | LV8746V-TLM-E | LV8743V-TLM-E | LV8761V-TLM-E | LV8741VL-TLM-E | LV8740V-TLM-E |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | Sanyo | Sanyo | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Active |
| Motor Type - Stepper | Bipolar | - | Bipolar | - | - | Bipolar |
| Motor Type - AC, DC | Brushed DC | - | - | Brushed DC | - | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage | - | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | - | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) | - | Half Bridge (4) | Half Bridge (2) | - | Half Bridge (4) |
| Interface | Parallel | - | Parallel | Parallel | - | Parallel |
| Technology | Bi-CMOS | - | Bi-CMOS | Bi-CMOS | - | BiCDMOS |
| Step Resolution | 1, 1/2, 1/4 | - | - | - | - | 1, 1/2, 1/4 |
| Applications | General Purpose | - | General Purpose | General Purpose | - | General Purpose |
| Current - Output | 1.5A | - | 500mA | 3A | - | 2.5A |
| Voltage - Supply | 2.7V ~ 5.5V | - | 4.5V ~ 5.5V | 3V ~ 5.5V | - | 0V ~ 5.5V |
| Voltage - Load | 9.5V ~ 35V | - | 10V ~ 35V | 9V ~ 35V | - | 9V ~ 35V |
| Operating Temperature | -20°C ~ 85°C (TA) | - | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) | - | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | - | Surface Mount | Surface Mount | - | Surface Mount |
| Package / Case | 44-LSSOP (0.220", 5.60mm Width) Exposed Pad | - | 44-LSSOP (0.220", 5.60mm Width) Exposed Pad | 36-LSOP (0.220", 5.60mm Width) Exposed Pad | - | 44-LSSOP (0.220", 5.60mm Width) Exposed Pad |
| Supplier Device Package | 44-SSOPK | - | 44-SSOP | 36-SSOPJ | - | 44-SSOPJ |
