| Part Number | LV8734VL-MPB-H | LV8734VZ-MPB-H | LV8732VL-MPB-H | LV8734V-MPB-H |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Motor Type - Stepper | Bipolar | Bipolar | Bipolar | Bipolar |
| Motor Type - AC, DC | Brushed DC | Brushed DC | Brushed DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) | Half Bridge (4) | Half Bridge (4) | Half Bridge (4) |
| Interface | Parallel | Parallel | Parallel | Parallel |
| Technology | BiCDMOS | BiCDMOS | BiCDMOS | BiCDMOS |
| Step Resolution | 1, 1/2, 1/4, 1/8 | 1, 1/2, 1/4, 1/8 | 1, 1/2, 1/4, 1/8 | 1, 1/2, 1/4, 1/8 |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Current - Output | 1.5A | 1.5A | 2A | 1.5A |
| Voltage - Supply | 0V ~ 5.5V | 0V ~ 5.5V | 0V ~ 5.5V | 0V ~ 5.5V |
| Voltage - Load | 9V ~ 32V | 9V ~ 32V | 9V ~ 32V | 9V ~ 32V |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -20°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

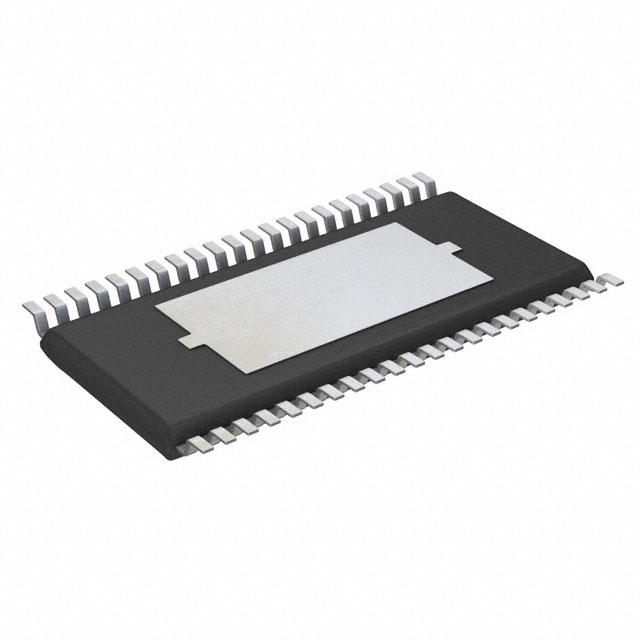

| Package / Case | 44-LSSOP (0.220", 5.60mm Width) Exposed Pad | 44-LSSOP (0.220", 5.60mm Width) Exposed Pad | 44-LSSOP (0.220", 5.60mm Width) Exposed Pad | 44-LSSOP (0.220", 5.60mm Width) Exposed Pad |
| Supplier Device Package | 44-SSOPK | 44-SSOPK | 44-SSOPK | 44-SSOPK |
