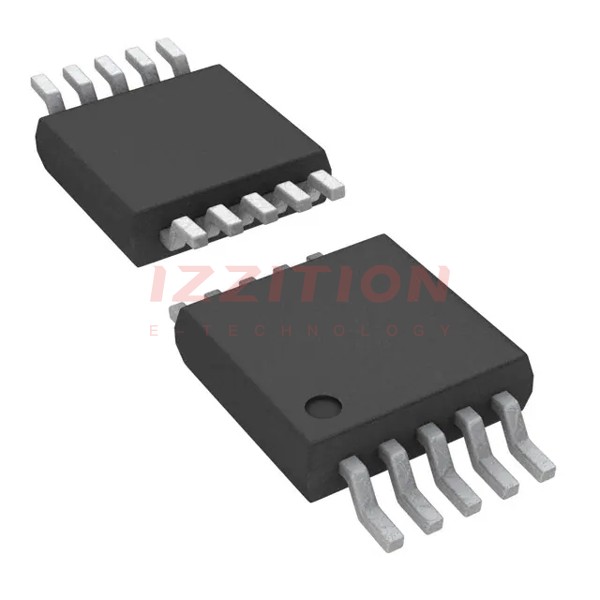

| Part Number | LV8548MCZ-AH | LV8548MC-AH |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| Output Configuration | Half Bridge (4) | Half Bridge (4) |
| Applications | DC Motors, General Purpose, Stepper Motors | DC Motors, General Purpose, Stepper Motors |
| Interface | Logic | Logic |
| Load Type | Inductive | Inductive |
| Technology | DMOS | DMOS |
| Rds On (Typ) | 1Ohm | 1Ohm |
| Current - Output / Channel | 1A | 1A |
| Current - Peak Output | - | - |
| Voltage - Supply | 4V ~ 16V | 4V ~ 16V |
| Voltage - Load | 4V ~ 16V | 4V ~ 16V |
| Operating Temperature | -30°C ~ 85°C (TA) | -30°C ~ 85°C (TA) |
| Features | - | - |
| Fault Protection | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 10-SOP (0.154", 3.90mm Width) | 10-SOP (0.154", 3.90mm Width) |
| Supplier Device Package | 10-SOIC | 10-SOIC |
