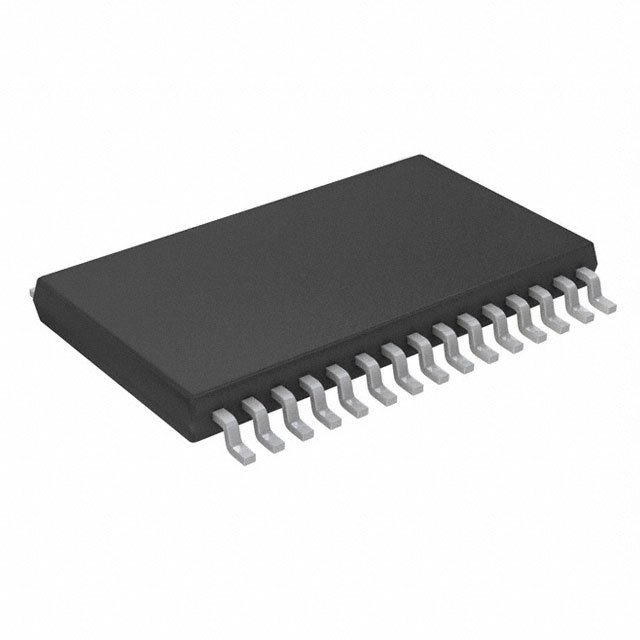

| Part Number | LV5234V-MPB-H | LV5234VZ-MPB-H | LV5235V-MPB-H | LV5236V-MPB-H |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Linear | Linear | Linear | Linear |
| Topology | - | - | - | - |
| Internal Switch(s) | Yes | Yes | Yes | Yes |
| Number of Outputs | 9 | 9 | 18 | 24 |
| Voltage - Supply (Min) | 4.5V | 4.5V | 4.5V | 4.5V |
| Voltage - Supply (Max) | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output | 42V | 42V | 42V | 42V |
| Current - Output / Channel | 100mA | 100mA | 100mA | 100mA |
| Frequency | 1MHz | 1MHz | 1MHz | 1MHz |
| Dimming | PWM | PWM | PWM | PWM |
| Applications | - | - | - | - |
| Operating Temperature | -25°C ~ 75°C (TA) | -25°C ~ 75°C (TA) | -25°C ~ 75°C (TA) | -25°C ~ 75°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 30-LSSOP (0.220", 5.60mm Width) | 30-LSSOP (0.220", 5.60mm Width) | 44-LSSOP (0.220", 5.60mm Width) Exposed Pad | 44-LSSOP (0.220", 5.60mm Width) Exposed Pad |
| Supplier Device Package | 30-SSOP | 30-SSOP | 44-SSOPJ-EP | 44-SSOPJ-EP |
