| Part Number | LV52207AXA-VH | LV52207NXA-VH | LV52207XA-VH |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Active |
| Type | DC DC Regulator | DC DC Regulator | DC DC Regulator |
| Topology | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) |
| Internal Switch(s) | Yes | Yes | Yes |
| Number of Outputs | 2 | 2 | 2 |
| Voltage - Supply (Min) | 2.7V | 2.7V | 2.7V |
| Voltage - Supply (Max) | 5.5V | 5.5V | 5.5V |
| Voltage - Output | 39V | 40V | 40V |
| Current - Output / Channel | 20mA | 20mA | 20mA |
| Frequency | 600kHz | 600kHz | 1.2MHz |
| Dimming | PWM, Single-Wire | PWM | PWM |
| Applications | Backlight | Backlight | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

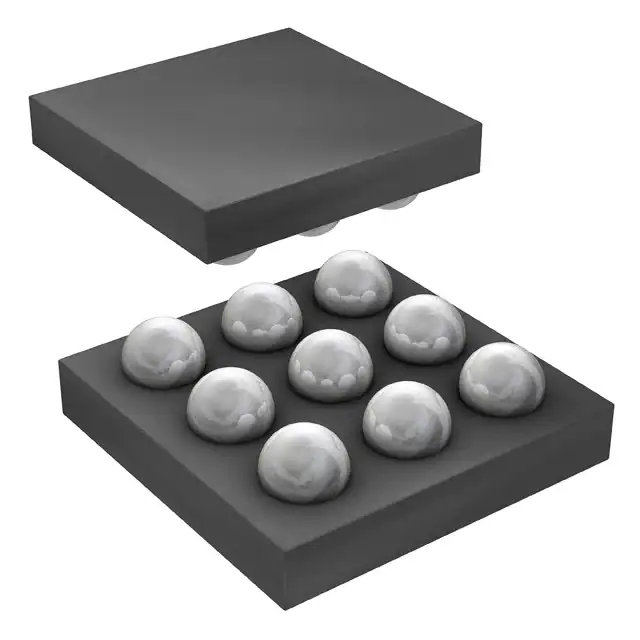

| Package / Case | 9-UFBGA, WLCSP | 9-UFBGA, WLCSP | 9-UFBGA, WLCSP |
| Supplier Device Package | 9-WLCSP (1.31x1.31) | 9-WLCSP (1.31x1.31) | 9-WLCSP (1.31x1.31) |
