Please send RFQ , we will respond immediately.
| Part Number | LV52204MUTBG | LV52205MUTBG | LV52204MTTBG |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Not For New Designs |
| Type | DC DC Regulator | DC DC Regulator | DC DC Regulator |
| Topology | Step-Up (Boost) | Step-Up (Boost) | Step-Up (Boost) |
| Internal Switch(s) | Yes | Yes | Yes |
| Number of Outputs | 1 | 1 | 1 |
| Voltage - Supply (Min) | 2.7V | 2.7V | 2.7V |
| Voltage - Supply (Max) | 5.5V | 5.5V | 5.5V |
| Voltage - Output | - | - | - |
| Current - Output / Channel | 700mA (Switch) | 700mA (Switch) | 700mA (Switch) |
| Frequency | 600kHz | 600kHz | 600kHz |
| Dimming | PWM, Single-Wire | PWM | PWM, Single-Wire |
| Applications | Backlight | Backlight | Backlight |
| Operating Temperature | -30°C ~ 85°C (TA) | -30°C ~ 85°C (TA) | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

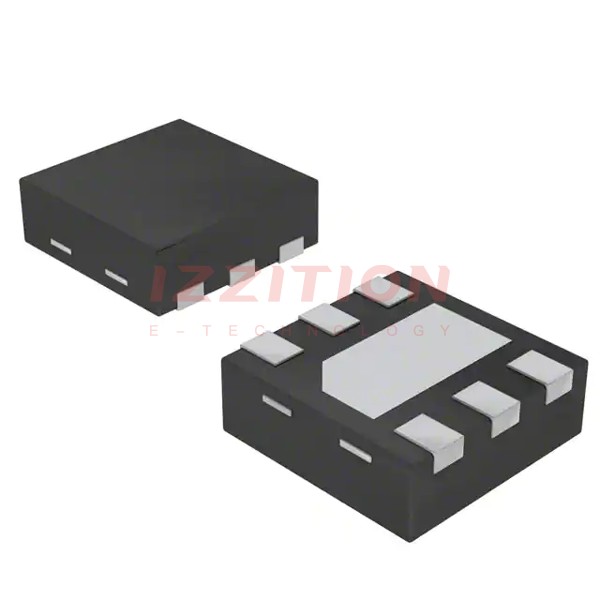

| Package / Case | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-UDFN (2x2) | 6-UDFN (2x2) | 6-WDFN (2x2) |
