| Part Number | LMV321AS5X | LMV321AP5X |
|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor |
| Product Status | Obsolete | Active |
| Amplifier Type | Voltage Feedback | Voltage Feedback |
| Number of Circuits | 1 | 1 |
| Output Type | Rail-to-Rail | Rail-to-Rail |
| Slew Rate | 1.5V/µs | 1.5V/µs |
| Gain Bandwidth Product | 1.4 MHz | 1.4 MHz |
| -3db Bandwidth | - | - |
| Current - Input Bias | 1 nA | 1 nA |
| Voltage - Input Offset | 1 mV | 1 mV |
| Current - Supply | 100µA | 100µA |
| Current - Output / Channel | 34 mA | 34 mA |
| Voltage - Supply Span (Min) | 2.7 V | 2.7 V |
| Voltage - Supply Span (Max) | 5.5 V | 5.5 V |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount |

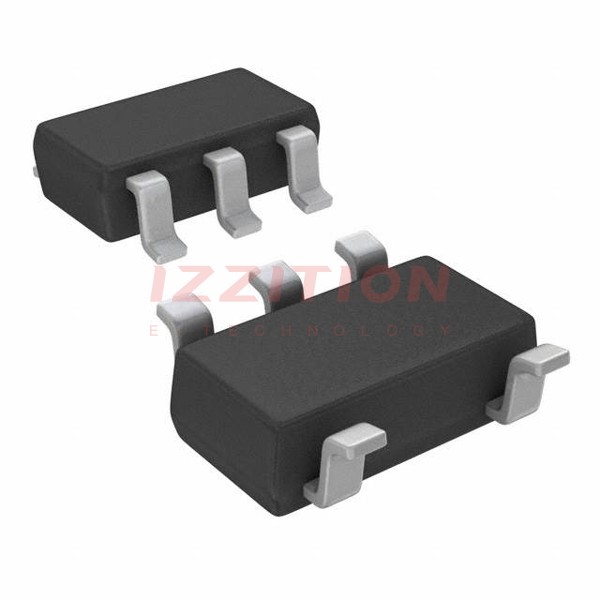

| Package / Case | SC-74A, SOT-753 | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SOT-23-5 | SC-70-5 |
