| Part Number | LM393NG | LM393SNG | LM393DG | LM393N |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Active |
| Type | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Elements | 2 | 2 | 2 | 2 |
| Output Type | CMOS, DTL, ECL, MOS, Open-Collector, TTL | CMOS, DTL, ECL, MOS, TTL | CMOS, DTL, ECL, MOS, Open-Collector, TTL | Open-Collector, CMOS, DTL, ECL, MOS, TTL |
| Voltage - Supply, Single/Dual (±) | 2V ~ 36V, ±1V ~ 18V | ±1V ~ 18V | 2V ~ 36V, ±1V ~ 18V | 2V ~ 36V, ±1V ~ 18V |
| Voltage - Input Offset (Max) | 5mV @ 30V | 5mV @ 5V | 5mV @ 30V | 5mV @ 30V |
| Current - Input Bias (Max) | 0.25µA @ 5V | 0.25µA @ 5V | 0.25µA @ 5V | 0.25µA @ 5V |
| Current - Output (Typ) | 16mA @ 5V | 16mA @ 5V | 16mA @ 5V | 16mA @ 5V |
| Current - Quiescent (Max) | 2.5mA | 1mA | 2.5mA | 2.5mA |
| CMRR, PSRR (Typ) | - | - | - | - |
| Propagation Delay (Max) | - | - | - | - |
| Hysteresis | - | - | - | 10mV |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |

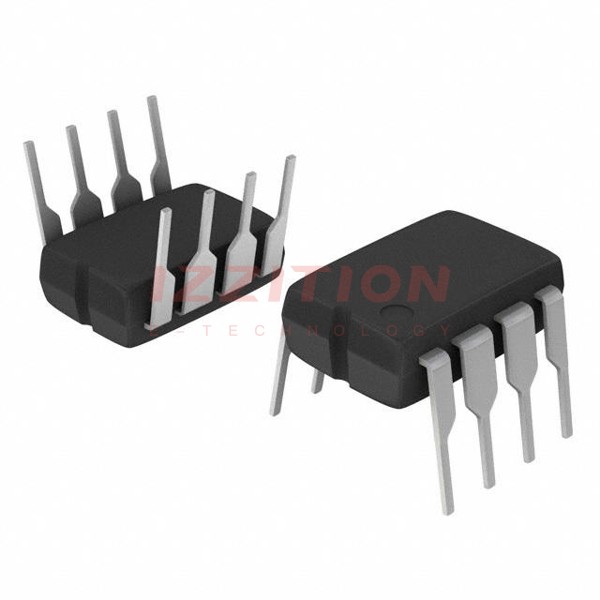

| Package / Case | 8-DIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) | 8-SOIC (0.154", 3.90mm Width) | 8-DIP (0.300", 7.62mm) |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Through Hole |
| Supplier Device Package | 8-PDIP | 8-PDIP | 8-SOIC | 8-PDIP |
