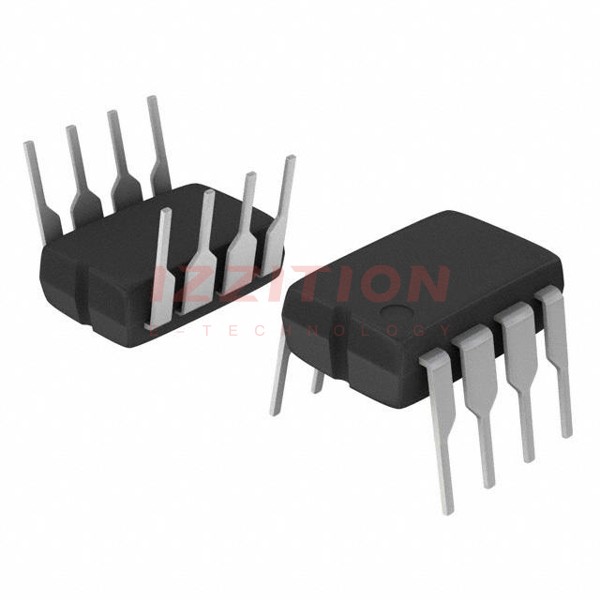

| Part Number | LM358NG | LM358SNG | LM358DG | LM358N |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Active |
| Amplifier Type | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Circuits | 2 | 2 | 2 | 2 |
| Output Type | - | Differential | - | - |
| Slew Rate | - | - | - | 0.7V/µs |
| Gain Bandwidth Product | 1 MHz | - | 1 MHz | 700 kHz |
| -3db Bandwidth | - | - | - | - |
| Current - Input Bias | 45 nA | 45 nA | 45 nA | 20 nA |
| Voltage - Input Offset | 2 mV | 2 mV | 2 mV | 3 mV |
| Current - Supply | 800µA (x2 Channels) | 500µA | 800µA (x2 Channels) | 700µA |
| Current - Output / Channel | 40 mA | 45 mA | 40 mA | 40 mA |
| Voltage - Supply Span (Min) | 3 V | 3 V | 3 V | 5 V |
| Voltage - Supply Span (Max) | 32 V | 32 V | 32 V | 40 V |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | -40°C ~ 125°C (TA) |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) | 8-SOIC (0.154", 3.90mm Width) | 8-DIP |
| Supplier Device Package | 8-PDIP | 8-PDIP | 8-SOIC | 8-PDIP |
