Please send RFQ , we will respond immediately.

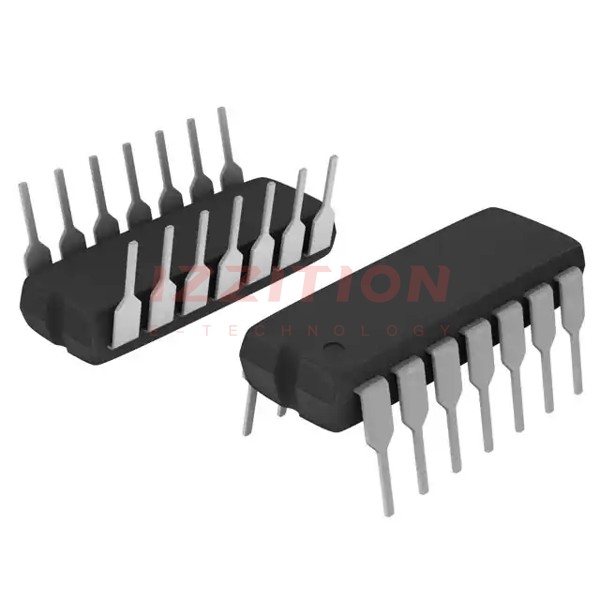

| Part Number | LM324ANG | LM324ANS | LM324NG | LM324SNG | LM324ADG | LM324AN |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | Texas Instruments | onsemi | onsemi | onsemi | Texas Instruments |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Active |
| Amplifier Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Circuits | 4 | 4 | 4 | 4 | 4 | 4 |
| Output Type | - | - | - | Differential | - | - |
| Slew Rate | - | 0.5V/µs | - | - | - | - |
| Gain Bandwidth Product | 1 MHz | 1.2 MHz | 1 MHz | - | 1 MHz | 1 MHz |
| -3db Bandwidth | - | - | - | - | - | - |
| Current - Input Bias | 40 nA | 15 nA | 90 nA | 90 nA | 40 nA | 45 nA |
| Voltage - Input Offset | 2 mV | 2 mV | 2 mV | 2 mV | 2 mV | 2 mV |
| Current - Supply | 1.5mA (x4 Channels) | 1.4mA (x4 Channels) | - | - | 1.5mA (x4 Channels) | 1.5mA |
| Current - Output / Channel | 40 mA | 30 mA | 40 mA | 40 mA | 40 mA | 40 mA |
| Voltage - Supply Span (Min) | 3 V | 3 V | 3 V | 3 V | 3 V | 3 V |
| Voltage - Supply Span (Max) | 32 V | 30 V | 32 V | 32 V | 32 V | 32 V |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C (TA) | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C (TJ) |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole | Surface Mount | Through Hole |
| Package / Case | 14-DIP (0.300", 7.62mm) | 14-SOIC (0.209", 5.30mm Width) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-SOIC (0.154", 3.90mm Width) | 14-DIP (0.300", 7.62mm) |
| Supplier Device Package | 14-PDIP | 14-SO | 14-PDIP | 14-PDIP | 14-SOIC | 14-PDIP |
