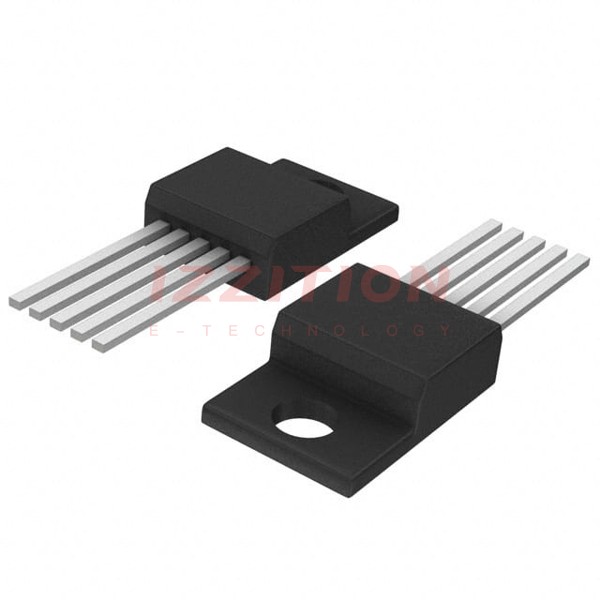

| Part Number | LM2931CTG | LM2931CTV | LM2931CDG | LM2931CT |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | - | Positive | Positive |
| Output Type | Adjustable | - | Adjustable | Adjustable |
| Number of Regulators | 1 | - | 1 | 1 |
| Voltage - Input (Max) | 26V | - | 26V | 26V |
| Voltage - Output (Min/Fixed) | 2.7V | - | 2.7V | 2.7V |
| Voltage - Output (Max) | 29.5V | - | 29.5V | 29.5V |
| Voltage Dropout (Max) | 0.6V @ 100mA | - | 0.6V @ 100mA | 0.6V @ 100mA |
| Current - Output | 100mA | - | 100mA | 100mA |
| Current - Quiescent (Iq) | 1 mA | - | 1 mA | 1 mA |
| Current - Supply (Max) | 6 mA | - | 6 mA | 6 mA |
| PSRR | - | - | - | - |
| Control Features | - | - | - | - |
| Protection Features | Over Current, Over Temperature | - | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C | - | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | - | Surface Mount | Through Hole |
| Package / Case | TO-220-5 | - | 8-SOIC (0.154", 3.90mm Width) | TO-220-5 |
| Supplier Device Package | TO-220-5 | - | 8-SOIC | TO-220-5 |
