onsemi-LM2931AD2T-5R4G - PMIC - Voltage Regulators - Linear Product Specifications and Latest Quotes

Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	26V
Voltage - Output (Min/Fixed):	5V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.6V @ 100mA
Current - Output:	100mA
Current - Quiescent (Iq):	1 mA
Current - Supply (Max):	30 mA
PSRR:	90dB (120Hz)
Control Features:	-
Protection Features:	Over Current, Over Temperature
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package:	D2PAK-3

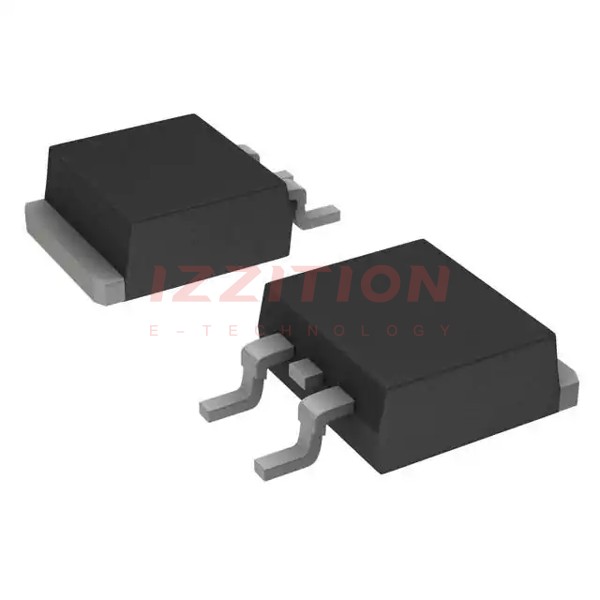

onsemi LM2931AD2T-5R4G
