| Part Number | LM2595TVADJG | LM2596TVADJG | LM2595TADJG |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Active |
| Function | Step-Up, Step-Down, Step-Up/Step-Down | Step-Up, Step-Down, Step-Up/Step-Down | Step-Up, Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive or Negative | Positive or Negative | Positive or Negative |
| Topology | Buck, Boost, Buck-Boost | Buck, Boost, Buck-Boost | Buck, Boost, Buck-Boost |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 |
| Voltage - Input (Min) | 4.5V | 4.5V | 4.5V |
| Voltage - Input (Max) | 40V | 40V | 40V |
| Voltage - Output (Min/Fixed) | 1.23V | 1.23V | 1.23V |
| Voltage - Output (Max) | 37V | 37V | 37V |
| Current - Output | 1A | 3A | 1A |
| Frequency - Switching | 150kHz | 150kHz | 150kHz |
| Synchronous Rectifier | No | No | No |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |

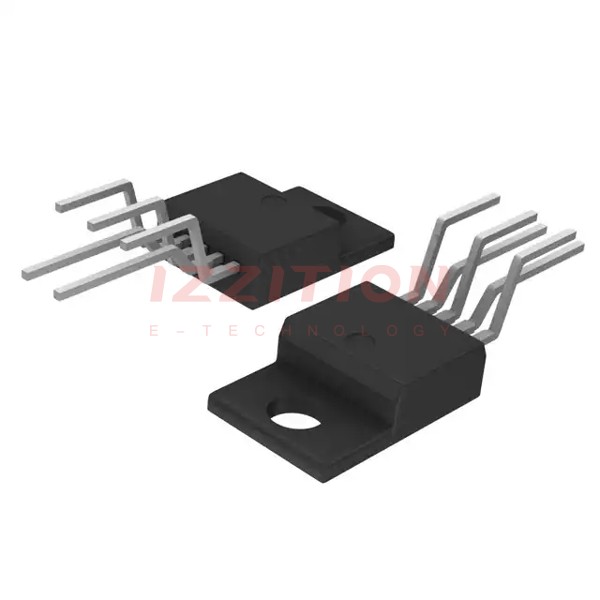

| Package / Case | TO-220-5 Formed Leads | TO-220-5 Formed Leads | TO-220-5 |
| Supplier Device Package | TO-220-5 | TO-220-5 | TO-220-5 |
