| Part Number | LM2576T-ADJG | LM2576TV-ADJG | LM2576T-ADJ |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | Texas Instruments |
| Product Status | Active | Active | Not For New Designs |
| Function | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive or Negative | Positive or Negative | Positive |
| Topology | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 |
| Voltage - Input (Min) | 7V | 7V | 4V |
| Voltage - Input (Max) | 40V | 40V | 40V |
| Voltage - Output (Min/Fixed) | 1.23V | 1.23V | 1.23V |
| Voltage - Output (Max) | 37V | 37V | 37V |
| Current - Output | 3A | 3A | 3A |
| Frequency - Switching | 52kHz | 52kHz | 52kHz |
| Synchronous Rectifier | No | No | No |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |

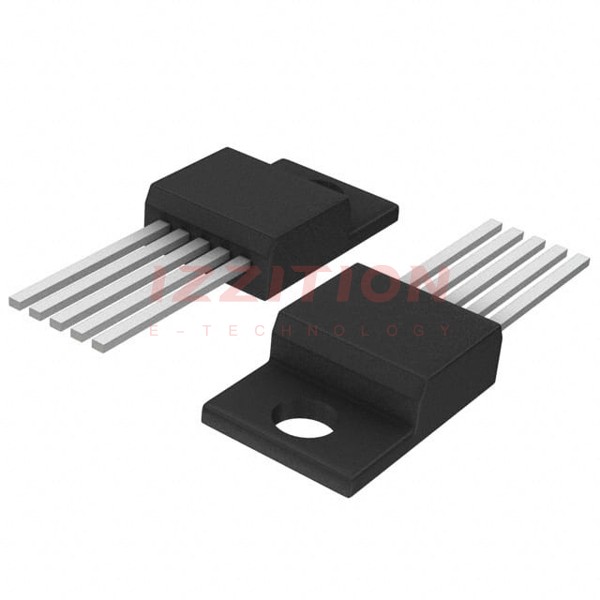

| Package / Case | TO-220-5 | TO-220-5 Formed Leads | TO-220-5 |
| Supplier Device Package | TO-220-5 | TO-220-5 | TO-220-5 |
